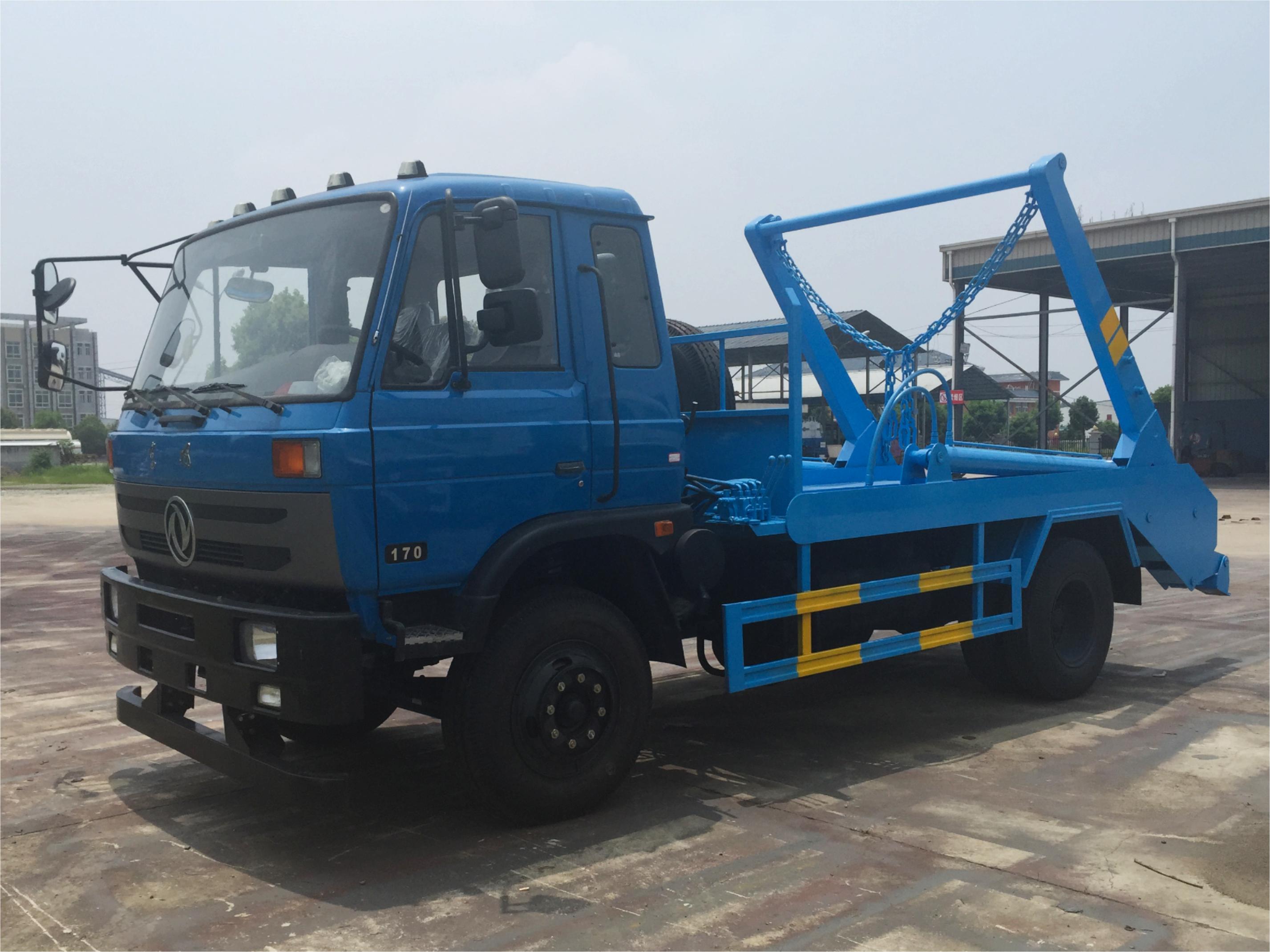

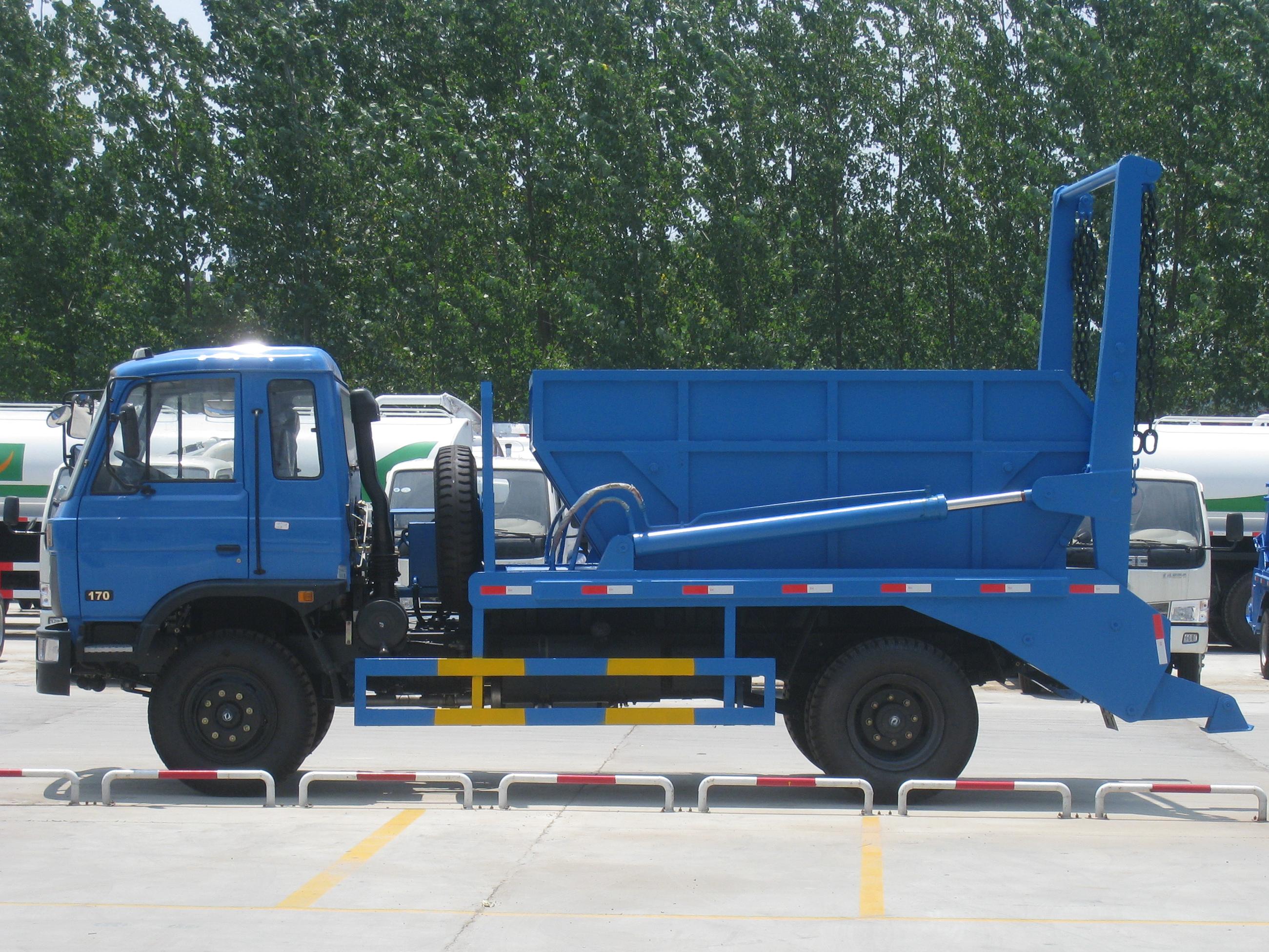

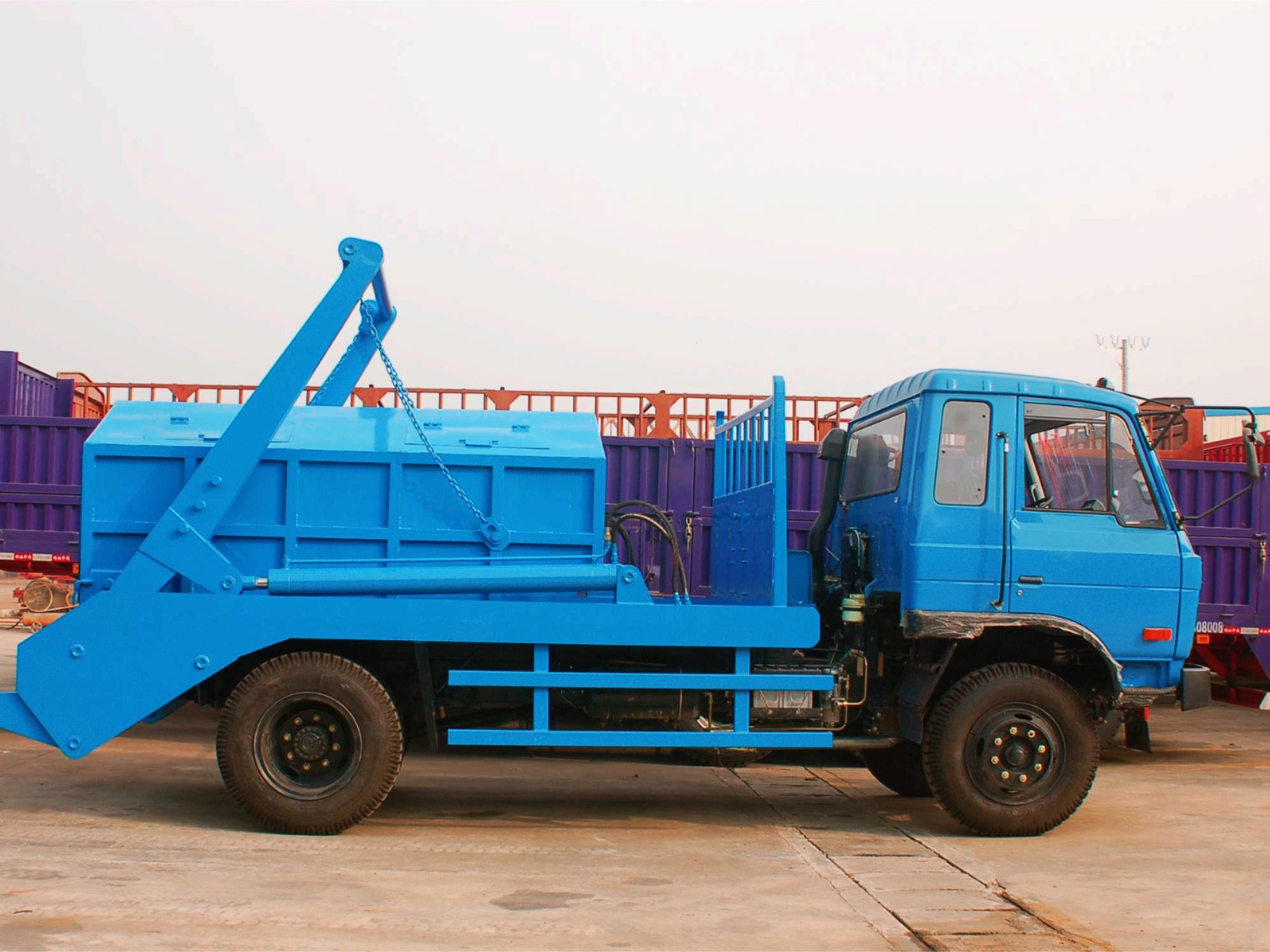

Dongfeng 10 Cbm Swing Arm Garbage Truck
Lifting Capacity: 3-8 Tons
Skip Bin Capacity: 4-12 m³
Chassis Brand: ISUZU / FOTON / HOWO / DONGFENG / FAW / JMC
Engine Power: 120HP – 240HP
Lifting Arm Reach: 2.5-5 Meters
Hydraulic System Pressure: 16-25 MPa
Rotation Angle of Lifting Arm: 120-180°
Tire Specification: 9.00R20 – 11.00R20 Tubeless Tires
Category：Hook Lift Garbage Truck
Introduction
Swing Arm Garbage Truck also known as Skip Loader Truck, Hook Lift Truck, Arm Roll Truck, or Skip Bin Loader Truck, the Swing Arm Garbage Truck is a professional and versatile waste management vehicle engineered with a robust hydraulic swing arm system—its core component for efficient waste handling. Equipped with a durable chassis, high-pressure hydraulic pump, and adjustable swing arm, it can seamlessly load, lock, transport, and unload skip bins (waste containers) of varying capacities (4-12 m³), accommodating both general waste and bulk debris such as construction scraps, industrial residues, and municipal refuse.
Its hydraulic swing arm system enables one-person operation, reducing labor costs, while compatibility with renowned chassis brands (Dongfeng, ISUZU, HOWO) ensures strong power output (120-240 HP) and adaptability to rough terrains. The vehicle’s sealed design prevents waste leakage and odor diffusion, meeting environmental standards in both regions, while customizable skip bin sizes and lifting capacities (3-8 Tons) cater to specific customer needs—from small-scale township collection to large industrial waste 转运. It has become an indispensable tool for municipal sanitation departments, waste management companies, construction firms, and industrial operators.
Technical Datas:
| Dongfeng 10 Cbm Swing Arm Garbage Truck | |||
| Main Specification | |||
| Gross weight(Kg) | 9895 | Driving type | 4×2 |
| Payload (Kg) | 4000 | Overall dimension (mm) | 6500×2500×2710 |
| Curb weight(Kg) | 5700 | cab seats (man) | 3 |
| Approach/departure angle (°) | 33/28 | Front/rear hang(mm) | 1250/1300 |
| Axle No. | 2 | Wheelbase (mm) | 3950 |
| Axle load(Kg) | 3460/6435 | Max speed(Km/h) | 90 |
| Chassis specifications | |||
| Chassis model | EQ1110GLJ | Manufacture | Dongfeng Automobile Company |
| Brand name | Dongfeng | Overall dimension (mm) | 7120×2462×2710 |
| Tire specification | 9.00-20 | Tires No. | 6+1 |
| Steel spring number | 8/11+8 | Front track(mm) | 1900 |
| Fuel type | Diesel | Rear track(mm) | 1800 |
| Emission standard | Euro III | Gear box | 6 forward |
| Engine information | Engine model | B170 33 | |
| Engine manufacture | Dongfeng cummins engine co.,ltd | ||
| displacement(ml)/ Power(Kw) | 5900/125 | ||
| Speed at Max Torque | 2500rpm | ||
| Max Torque | 560N.m | ||
| Performance | |||
| Body capacity（m³） | 10 | Box body material | Q235 carbon steel |
| Discharge Method | Rear dump | Operation control system | Manuel + electric |
| Characteristic | |||
| 1、Detachable Container Garbage Truck also called pull arm garbage truck ； | |||
| 2、Using full hydraulic control , the operator can do the waste bin lifting, discharging and dumping both in the driving room or out of the room, and all the operations can be performed by one driver in the cab； | |||
| 3、The truck compartment using fully enclosed design,there is no water leakage while transportation, that is avoid the secondary pollution problem, make it more environmental friendly； | |||
| 4、The truck can equipped with several garbage box, one truck can maintain multiple garbage collection point operation, high efficiency. | |||
