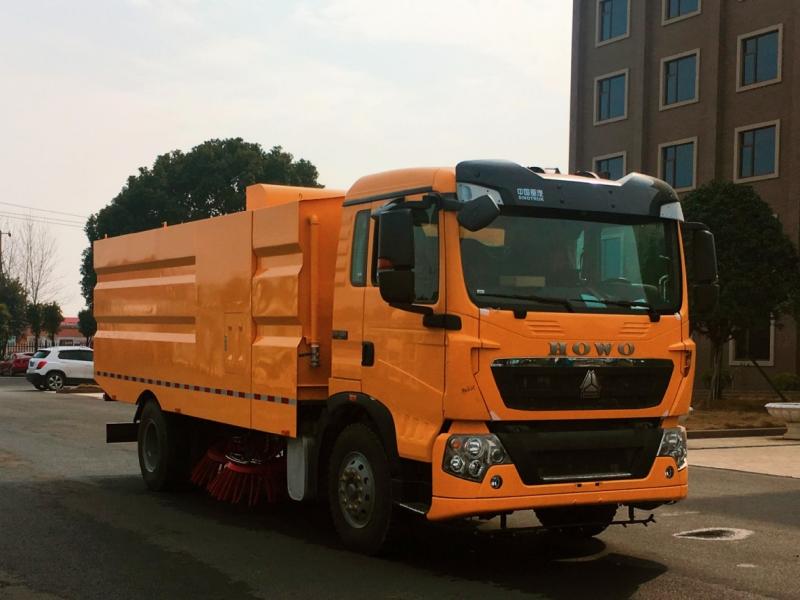

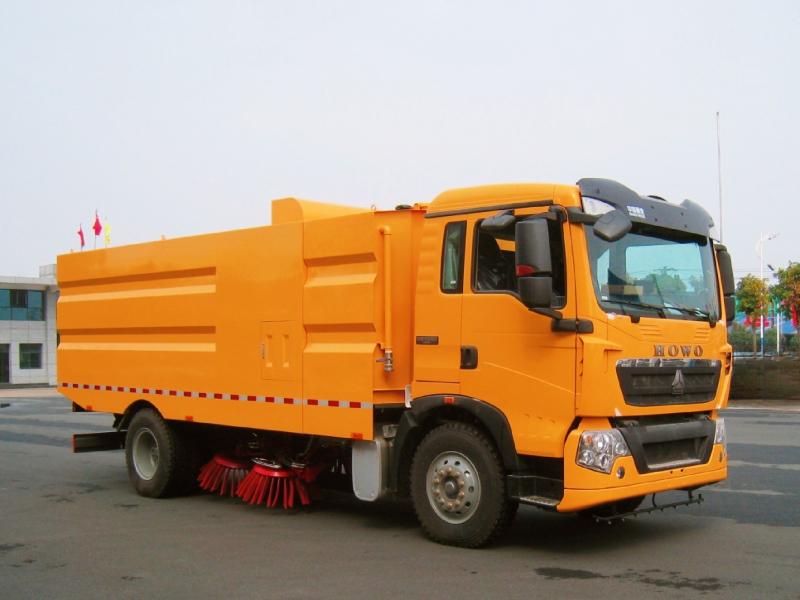

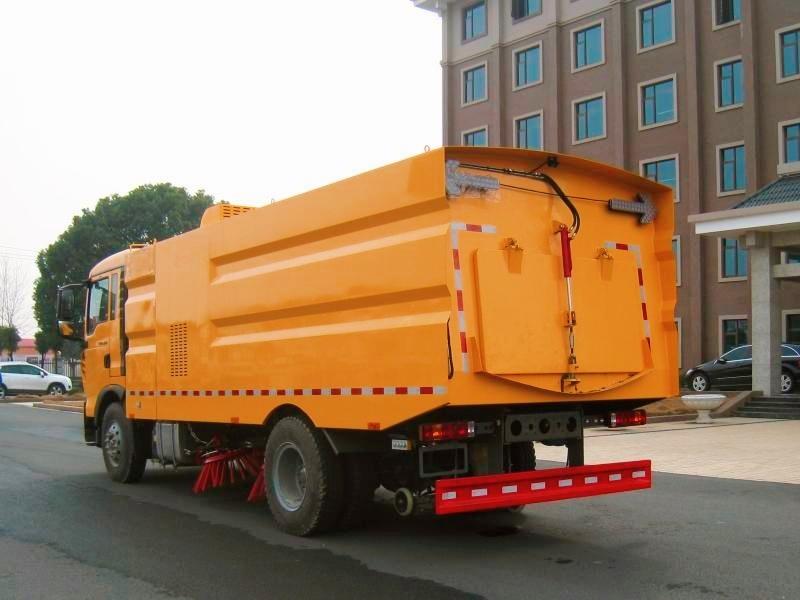

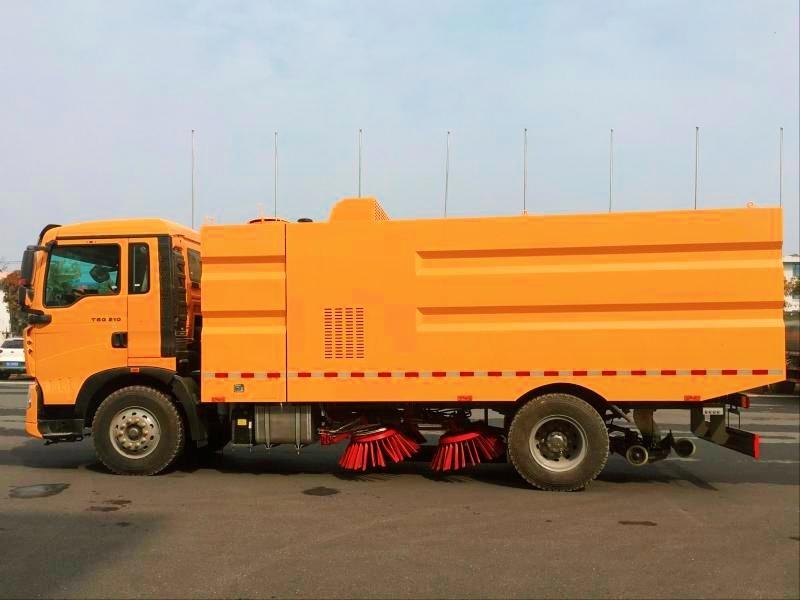

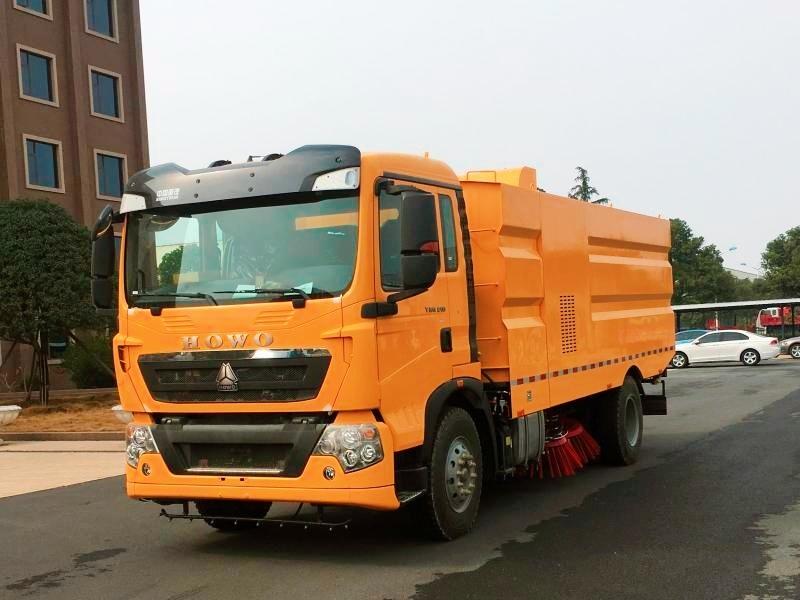

SINOTRUK 6*4 Road Street Sweeper Trucks
Sweeping Width: 2.8-3.5 Meters
Dustbin Capacity: 6-12 m³
Chassis Brand: HOWO / ISUZU / FOTON / DONGFENG / JMC / FAW
Engine Power: 180HP – 300HP
Suction Power: 15-25 kPa
Water Tank Capacity: 2-5 m³
Brush Rotation Speed: 180-300 rpm
Tire Specification: 10.00R20 – 12.00R20 Tubeless Tires
Category：Road Sweeper
Introduction
Road sweeper truck ,also named as road sweeping truck, street sweeper truck. It is a vehicle designed for cleaning and sweeping the surface of roads, streets, and highways. The road sweeper truck is equipped with a variety of brushes, high-pressure water jets, and vacuum systems to remove debris, dirt, dust, and other unwanted materials from the road surfaces. These road sweeping trucks are commonly used by municipalities, cleaning contractors, and highway maintenance crews to keep roads and streets clean and safe for travel. The size and capacity of the road sweeper truck may vary depending on the specific requirements of the roads and streets being cleaned.
Road sweeper trucks can be classified into 4 main categories:
1. Mechanical broom sweepers: These trucks use a rotating broom or sweeper assembly to sweep debris, dirt, and other materials off the road surface. The broom can be adjusted to different angles and heights to effectively clean various types of surfaces.
2. Regenerative air sweepers: This type of road sweeper employs a high-powered fan system to create suction and propel air at high velocities to lift and remove debris from the road surface. The collected debris is then deposited into a hopper for disposal. Regenerative air sweepers are ideal and popular choices for urban street cleaning and construction site maintenance.
3. Vacuum sweepers: Vacuum sweepers utilize a powerful vacuum system to collect debris and dirt from the road surface, which is then transferred to a holding tank or hopper. These trucks are suitable for removing fine particles, dust, and other small debris that may not be effectively captured by mechanical broom or regenerative air sweepers. Vacuum sweepers are often used for cleaning up after special events, road construction projects, or in parking lots and industrial facilities.
4. Waterless sweepers: Waterless sweepers are equipped with advanced dust suppression systems that use technologies such as ultrasonic dust control, wetting agents, or dust collection systems to reduce airborne dust emissions during sweeping operations.
Technical Datas:
| SINOTRUK HOWO 6X4 Road Street Sweeper Trucks | |
| Kerb Weight (Kg) | 15600 |
| Garbage Tank Volume (m3) | 10 |
| Tank Material | Stainless Steel |
| Sweep Speed（km/h） | 3-15 |
| Max.Cleaning Width（m） | 3.5 |
| Tipper unloading angle（°） | 45 |
| Secondary engine Power（kw） | 125 |
| Overall Dimensions (mm) | 10150×2500×3360 |
| Water Tank Volume (m3) | 12 |
| Sweeper brush | 2 |
| Speed of Road Cleaning（km/h） | 15-20 |
| Max.Sweeping Capacity（m2/h） | 54000 |
| Max. Suction size（mm） | 100 |
| Sweeping Efficiency （%） | 95 |
| Brand Name | Howo |
| Fuel Type | diesel |
| Front Axle/Rear Axle (t) | 7/18 |
| Number of Axles | 3 |
| Number of Tires | 10 |
| Brake | Air Brake/Oil Brake |
| Engine Power（kw） | 240 |
| Gearbox Model | 10-Speed Manual |
| Wheelbase (mm) | 4350+1350 |
| Tire Size | 11.00R20 18PR |
