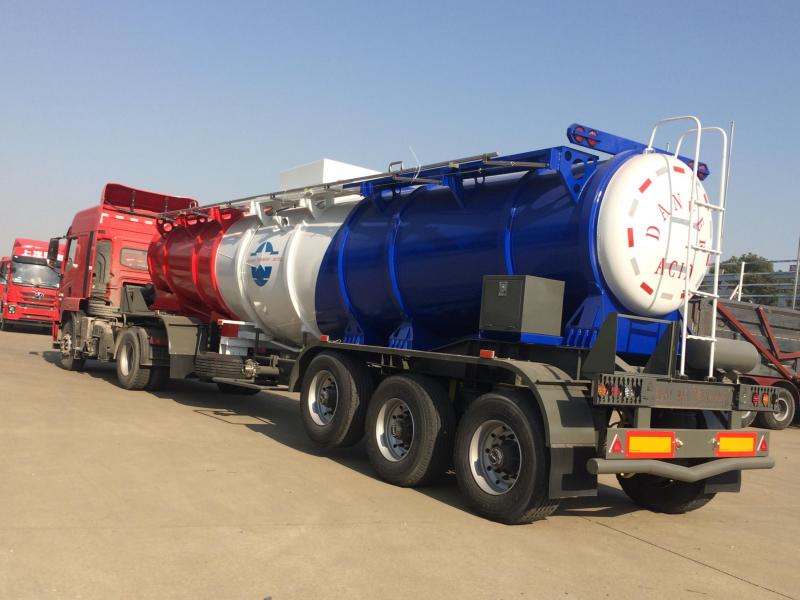

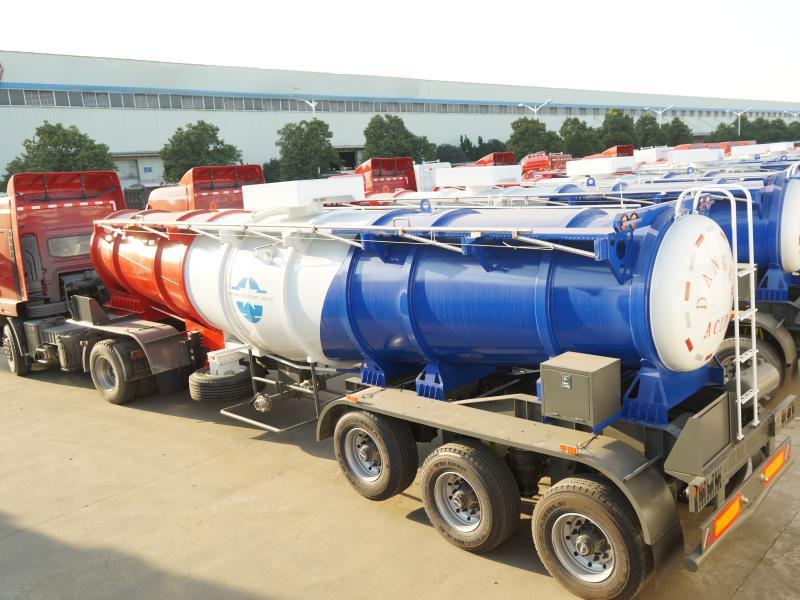

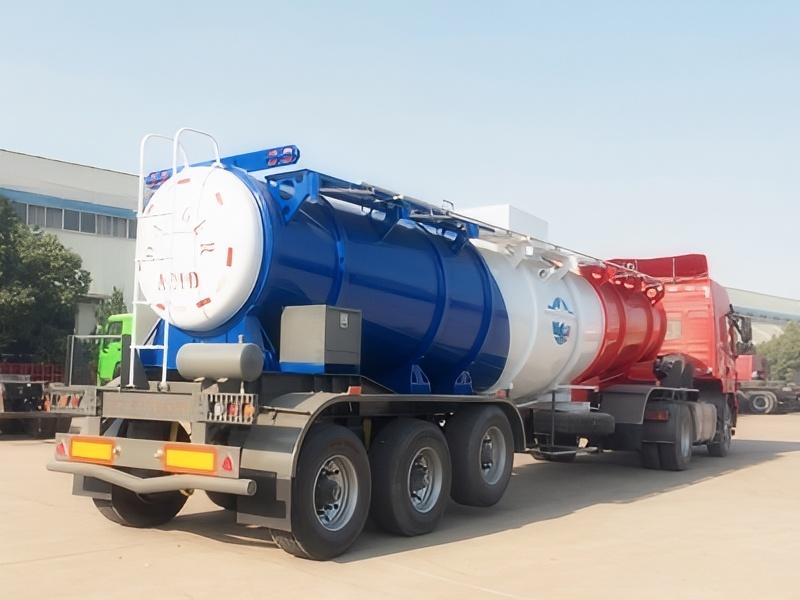

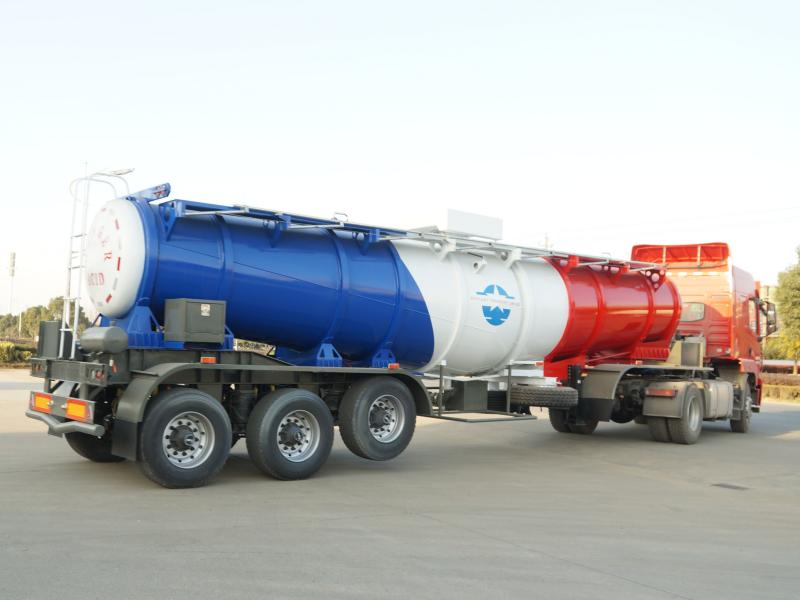

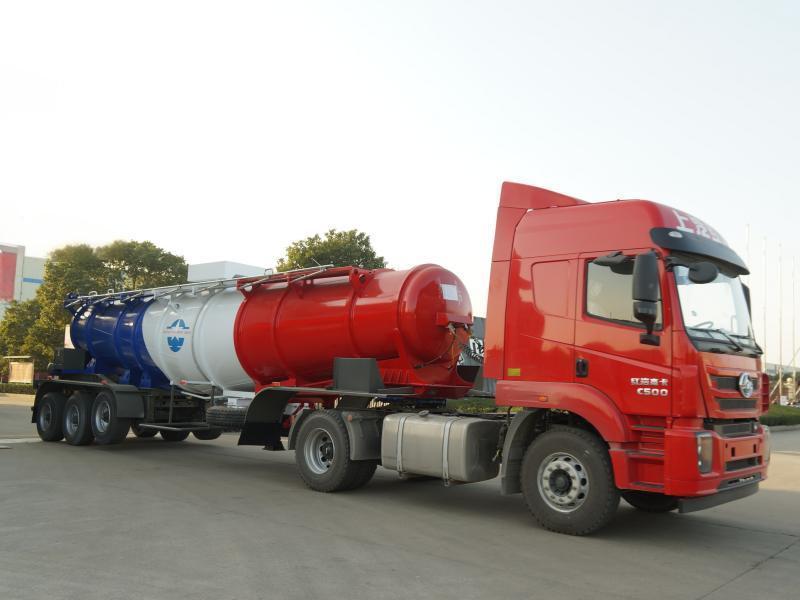

Tri-Axle Strong Sulfuric Acid Tank Semi-Trailer
Tank Capacity: 30-45 m³
Material of Tank Body: Q235B carbon steel with acid-resistant lining (PTFE/FRP)
Maximum Payload: 35-48 Tons
Axle Configuration: Tri-Axle (3 Axles) with BPW/SAF axles (optional)
Corrosion Resistance Grade: Acid-resistant coating, pH 0-1 compatibility
Safety Devices: Emergency shut-off valve, anti-overflow device, pressure relief valve, grounding wire
Loading/Unloading Method: Bottom discharge (manual/pneumatic control) + top loading port
Tire Specification: 12R22.5 tubeless tires (12 pcs + 1 spare)
Category：Chemical Tanker
Introduction
Tri-Axle strong sulfuric acid tank semi-trailer also known as Sulfuric Acid Transport Semi-Trailer, the Tri-Axle Strong Sulfuric Acid Tank Semi-Trailer features corrosion-resistant design for safe, efficient transport of concentrated sulfuric acid. Ideal for chemical, petrochemical and industrial sectors requiring reliable hazardous material logistics.
Product Description
1.The brief introduction of chemical liquid tanker semi-trailer oil tank semi trailer
Tanker semi trailer composed of sealed tanker,running gear(including axles, tires, landing gear, valve and pipeline system, etc.)
This Tanker is applied to transport chemical liquid in a short or long distance. It’s an ideal equipment to transport chemical liquid
2.The main character of this chemical liquid tank
1.The trailer are made by advanced techniques from both Europe and China
2.The key parts equipped with high quality fittings both domestic and overseas
3.Skeleton fasten by strength welding process or strengthen bolted connection
4.Safe and reliable driving for any bad road conditions
5.The tank can divided into several sections that can load kinds of loading medium based on client’s requirement (Optional)
6.Easy maintained and very light,it is very pure to transport kinds of chemicals
7.That type of tank adopted LLDPE lined steel material which have the corrosion performance to transport chemical liquids
3.Special tank semi-trailer configurations
1.Tank can be divided into serveral compartments based on client’s special demand
2.Trailer air suspension is optional
3.1st axle can be lift automated by air
4.Insulation layer and heating system is available
Technical Datas
| All technical specification of V Shape strong sulfuric acid tank trailer | |
| A: V Shape tanker specification | |
| Tanker material | 6mm Carbon steel-Q235 for tanker body |
| 8mm Carbon steel-Q235 for the end shell cover | |
| Tanker baffle | 6 baffles 5mm with Carbon steel-Q235 |
| Tanker capacity | 20,000 Liters |
| Tanker Shape | V Shape tanker design and manufactured |
| Tanker compartment | 1 compartment of 20,000 Liters |
| B: Tank semi-trailer dimension and Weight parameter | |
| Overall weight(kg) | 46,000 |
| Curb weight(kg) | 9,500 |
| Max.loading weight(kg) | 40,000 |
| Overall dimensions(mm) | 11450×2495×3670 |
| Wheelbase(mm) | 5790+1360+1360 |
| C: Tank semi-trailer chassis(Running Gear) | |
| Axle description | 13Ton FUWA axle.Each axle 13Ton load capacity |
| Tire specification | Double coin 12.00R22.5 Tubeless tire,total 12 units |
| Brake pad | 16Ton brake pad |
| Spare tire carrier | 2 unit spare tire carrier |
| Tool box | 3 unit tool box. 2 units at each side,1 units at rear |
| Water tanker | 1 unit 200 Liters water tanker.Reinforced water tank frame |
| Suspension type | Leaf Spring suspension.Leaf spring No:9/9/9,16*90mm |
| Landing gear | JOST T200 double action landing gear |
| Break system | A system with emergency brake and parking brake |
| Dual line-air brake, piggyback spring on all axles | |
| ABS(Anti-skid brake system) is available | |
| Kingpin specification | JOST 90mm kingpin |
| Electric circuit | Chinese standard 24V |
| Main frame description | Heavy duty and extra durability designed I beam |
| Material is 16Mn-steel,8mm thickness | |
| Ladder | High strength steel ladder located at the rear |
| Hand rail | Aluminum alloy made hand rail |
| Walkway platform | Barrel top with anti-skid surface treatment |
| Lateral protection | Carbon steel made installed both side of the tanker |
| D: Other spare parts | |
| Manhole cover | 1 unit DN550mm stainless steel manhole cover |
| Anti-flow box | Heightened Stainless steel anti-flow box with drain pipe |
| Vent valve | 1 unit stainless steel vent valve |
| Tanker charge system | Manhole loading |
| Tanker discharge system | Bottom discharge,discharge outlet strengthen |
| Discharge valve | 1 set DN100mm Stainless steel ball valve outlet also lining butterfly valve as emergency cutoff device |
| Fire extinguisher cage | 2 pcs x 8Kg’s fire extinguisher, installed at sides of vehicle |
| E: Trailer fixture & painting | |
| Lighting | 24 Volt electrical system,with all LED light |
| Marker light at both side of trailer | |
| Complete with 3M reflective tape at both sides and rear | |
| Rear Bumper | Made of Steel according to manufacture Standard design |
| Mud guard / Mud Flap | Rubber mud guard and rubber mud flap |
| Vehicle coating | Sand blasted, 1 coat anti-rust,base coat and 1 finishing coats in dark Grey color.Painting per client’s required |
| Warning information | “Dangerous acid” warning on each side and rear of tanker |
