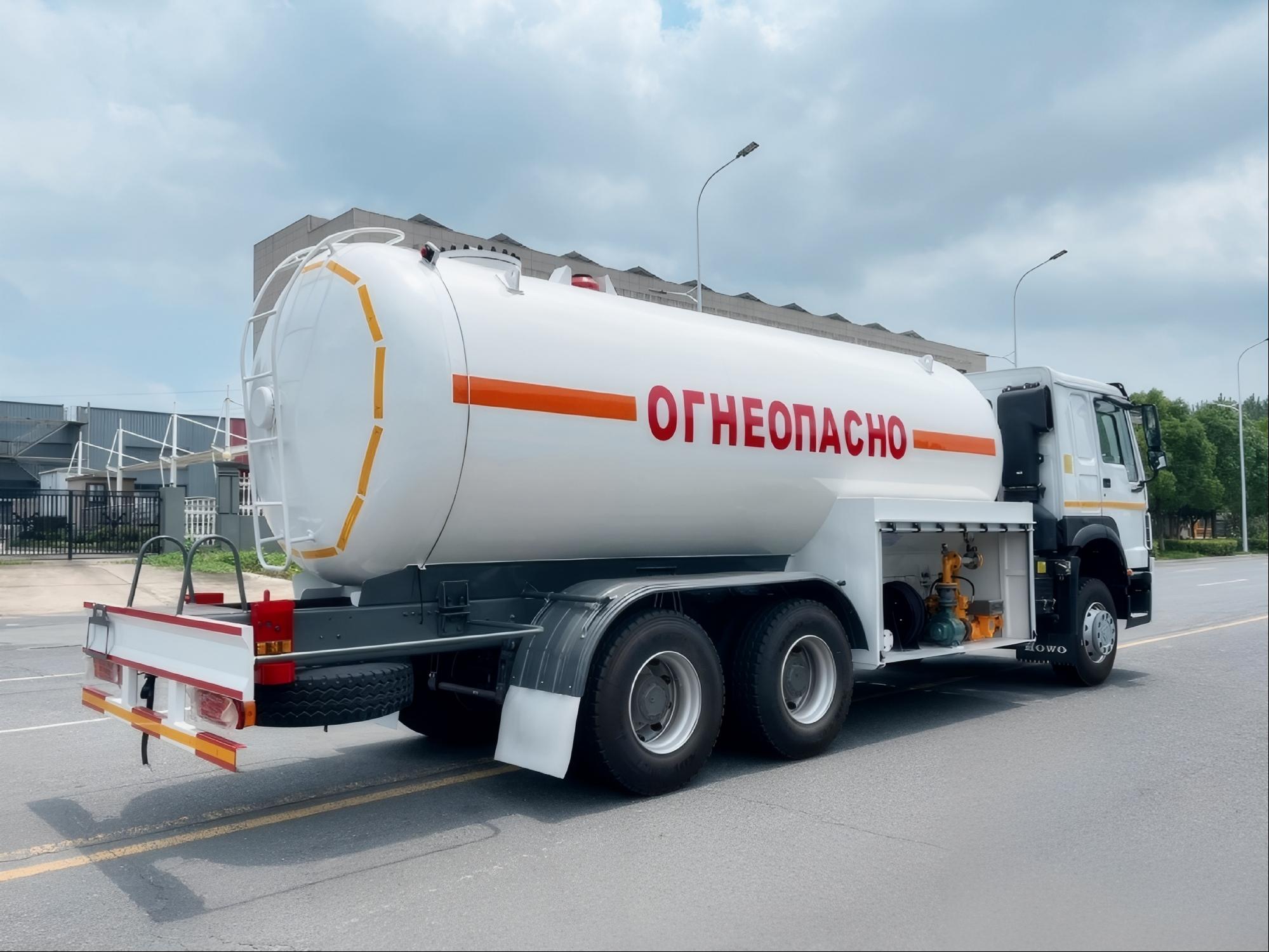

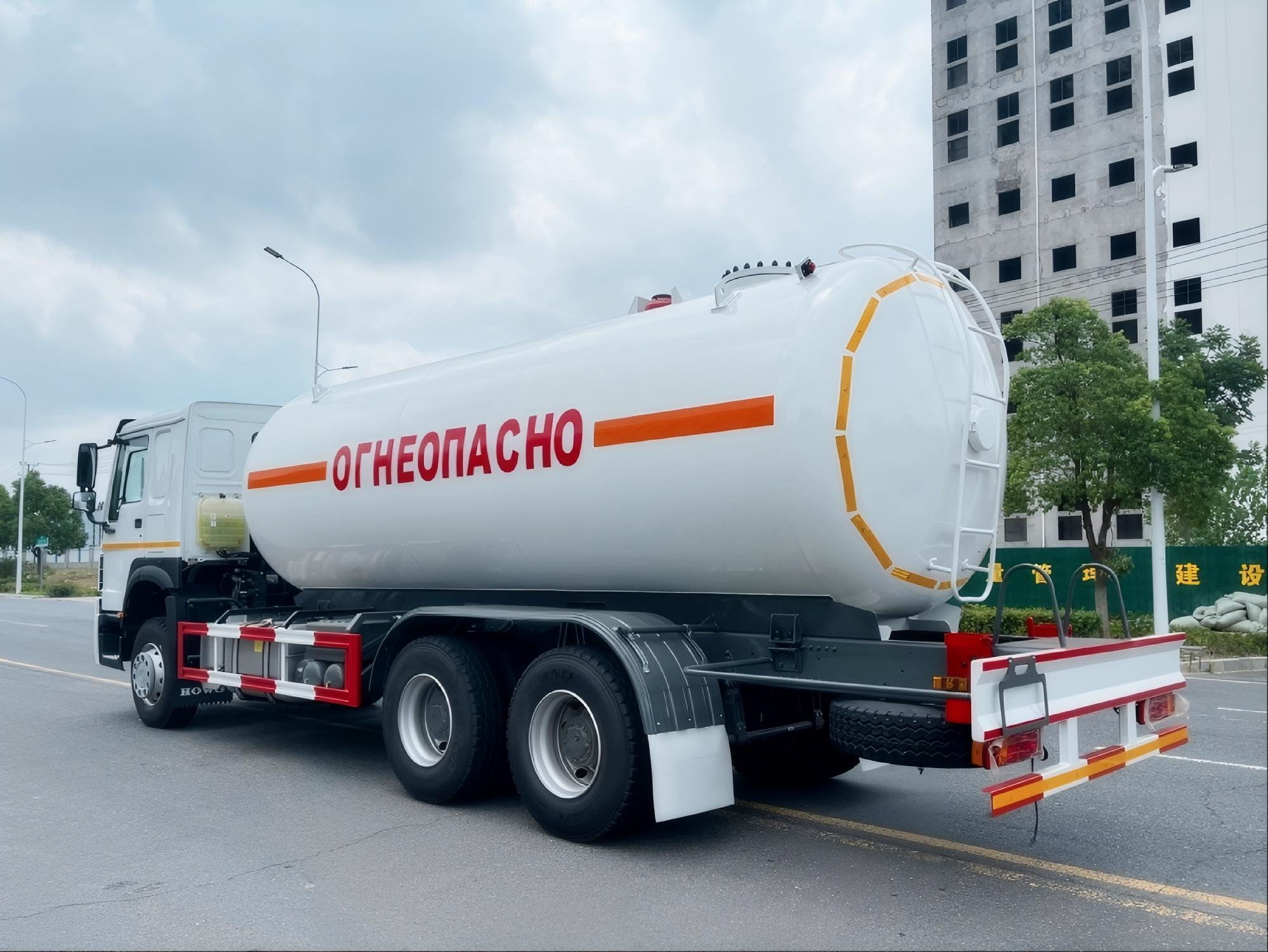

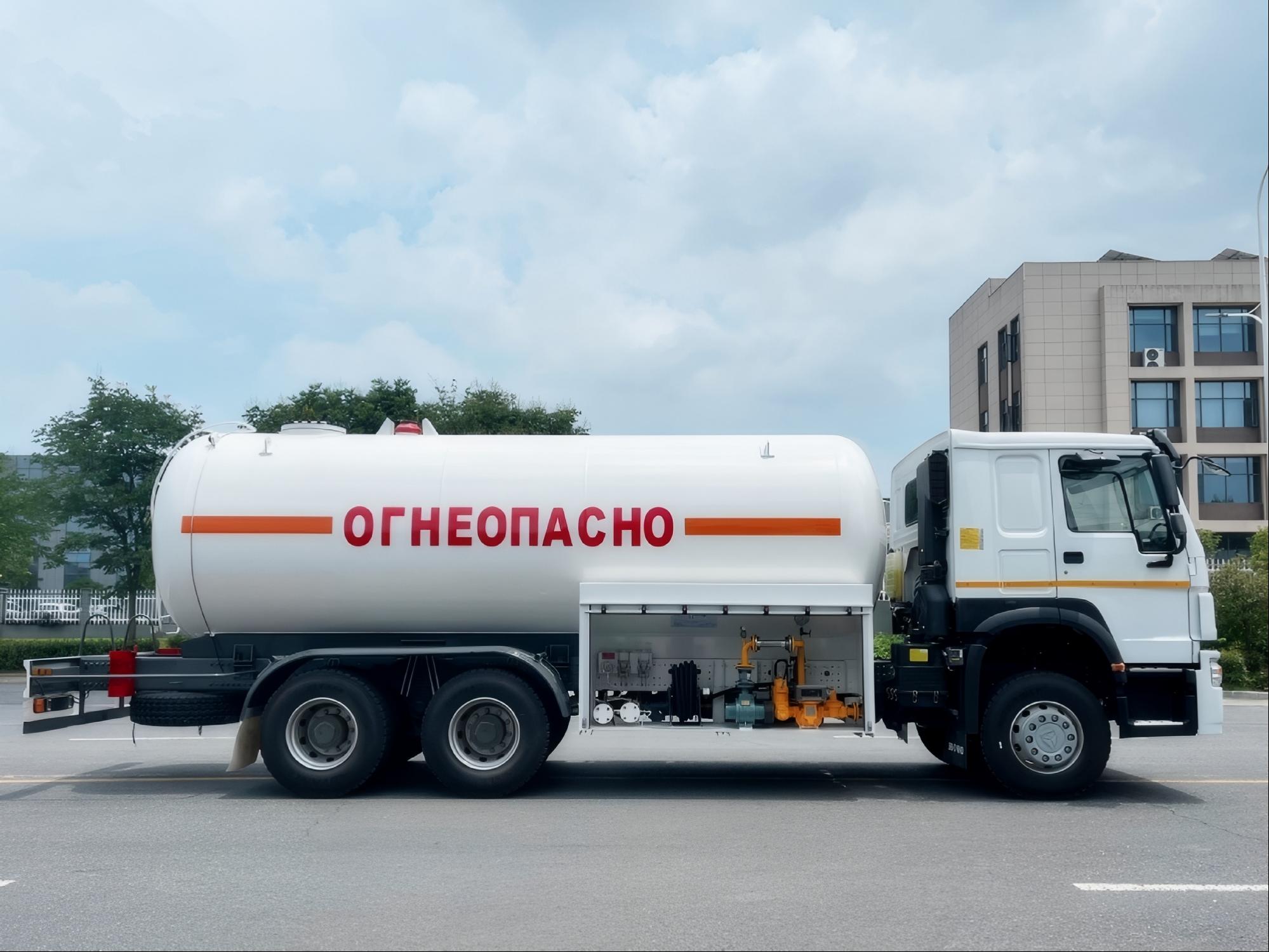

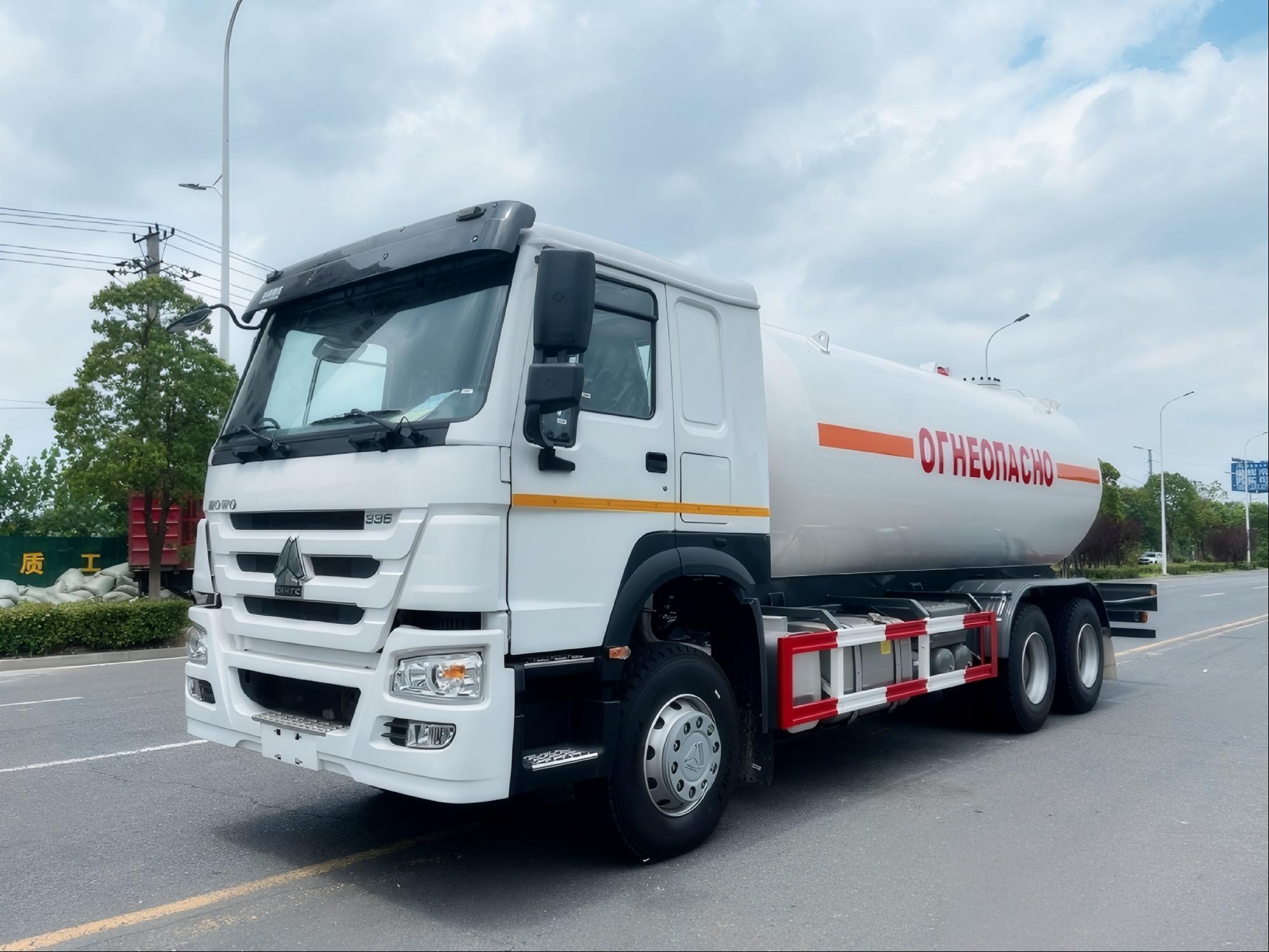

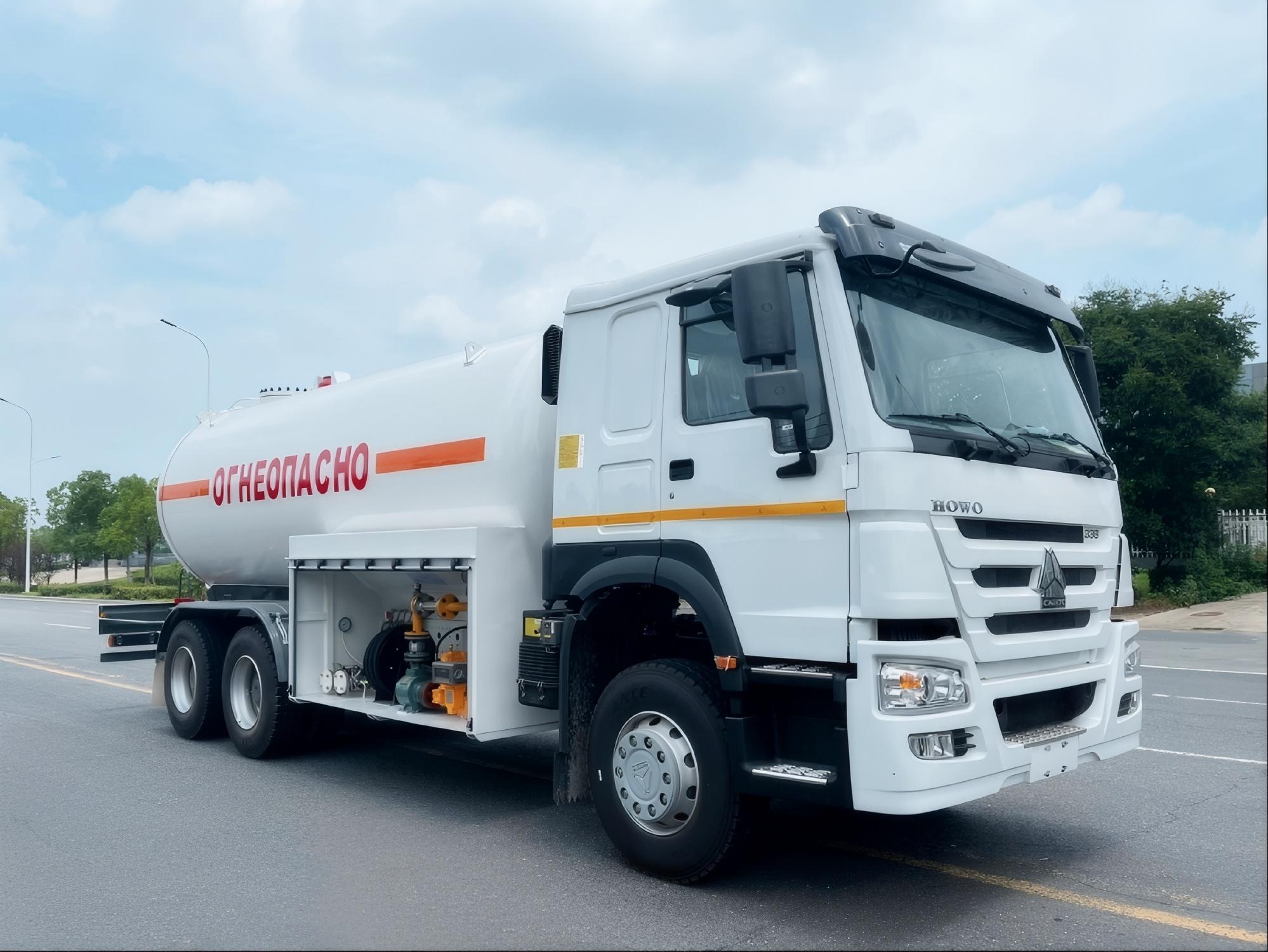

HOWO 6X4 20CBM LPG Gas Tanker Truck
Drive Type: 4×2, 4×4, 6×4, 8×4 LHD/RHD
Chassis Brand: FOTON, HOWO, ISUZU, DONGFENG, FAW, JAC
Emission Standard: Euro 2/3/4/5/6
Engine Power: 150HP – 350HP
Tank Capacity: 5m³ – 50m³
Working Pressure: 0.8MPa to 1.6MPa
Tank Thickness: 6mm – 12mm
Filling Medium: LPG
Category：LPG Tanker
Introduction
LPG Tanker, also called lpg refueling truck, mobile lpg filling station,gas cylinder filling truck,lpg filling truck,gas refueling truck,lpg distribution truck,gas distributor truck,propane delivery truck,LPG Truck, lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck,propane delivery truck,propane bobtail,propane gas truck,gas dispensing truck,propane refilling truck. It is designded and used for transporting,delivering and refueling propane/lpg gas/liquid petroleum gas into smaller lpg tanks and home use lpg cylinders.
We offer a precision engineered range of LPG Gas Tanker , that are extensively used in diverse industries to transport LPG from one place to the other. Fabricated from finest grade material, these tanks can suitably store liquids and gases under high pressures and are highly durable, sturdy and resistant to corrosion. Our range is available in varied specifications and can also be custom designed as per clients’ requirements.
Product Description
1. LPG bobtail truck design purpose: mobile filling truck to serve in territories outside the urban cities which can help people access LPG more.
2. Truck Brand for choose : Howo, Dongfeng, Faw, Isuzu, Foton, JAC, JMC,Shacman etc.
3.Tank capacity: 3tons, 4tons, 5tons, 6tons, 7tons, 8ton, 10tons, 15tons, 20tons, 25tons, 30tons, 35tons, 40tons.
4. Refiling System: Flowmeter or LPG dispenser,2″ Corken or Chinese brand LPG Pump,15meters Filling Hose Reel.
Specification
| Chassis | Chassis Brand | Sinotruck HOWO |
| Drive Type | 6×4 left/right hand drive | |
| Wheelbase(mm) | 4300+1350 mm / 4600+1350mm | |
| Tire Specifications | 295/80R22.5 | |
| The Number of Tires | 10pcs with one spare tire | |
| Dimensions(mm) | 9800×2500×3600 | |
| Air Conditioner | A/C | |
| Brake System | Air break | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Gear box | 10 Forwards & 2 Reverse , manual operated | |
| Max. driving speed(km/h) | 95 | |
| Engine | Model | Weichai |
| Horsepower(HP) | 336hp | |
| Emission standard | Euro 2/ 3/ 4/ 5/ 6 | |
| Cylinder No. | Diesel,Vertical in-line, water-cooled, six stroke, | |
| Fuel type | Diesel | |
| Cabin | 3 Passengers,single row,1 sleeper | |
| Tank Material | Q345R high tension steel, 10mm Thick Tank Body. | |
| Standard Equipment | 2 Safety Valves,1 Rotor Level Gauge, 1 Rochester Level Gauge, | |
| 1 Pressure Gauge, 1 Thermometer, 2 Emergency Shut-off Valve, 1 Tool Boxes, Anti-static Grounding Tape, with 1 valve boxes | ||
| Specification | Designed Pressure: 1.61Mpa / 16.1 Bar | |
| Hydraulic Test Pressure: 2.21 Mpa / 22.1 Bar | ||
| Air Tightness Pressure: 1.61Mpa / 16.1Bar | ||
| Medium Density: 500-590 kg/m3 | ||
| Working Temperature: under 50 centi-degree | ||
| Corrosion Allowance: 1mm | ||
| Filling System | Hydraulic Drive 2″ Truck Pump. | |
| LPG Flow Meter to Record Filling Volume | ||
| LPG Filling Hose for Cylinder with mechanical Scale for Weigh | ||
| Filling Hose & Gun to fill small tanker. | ||
