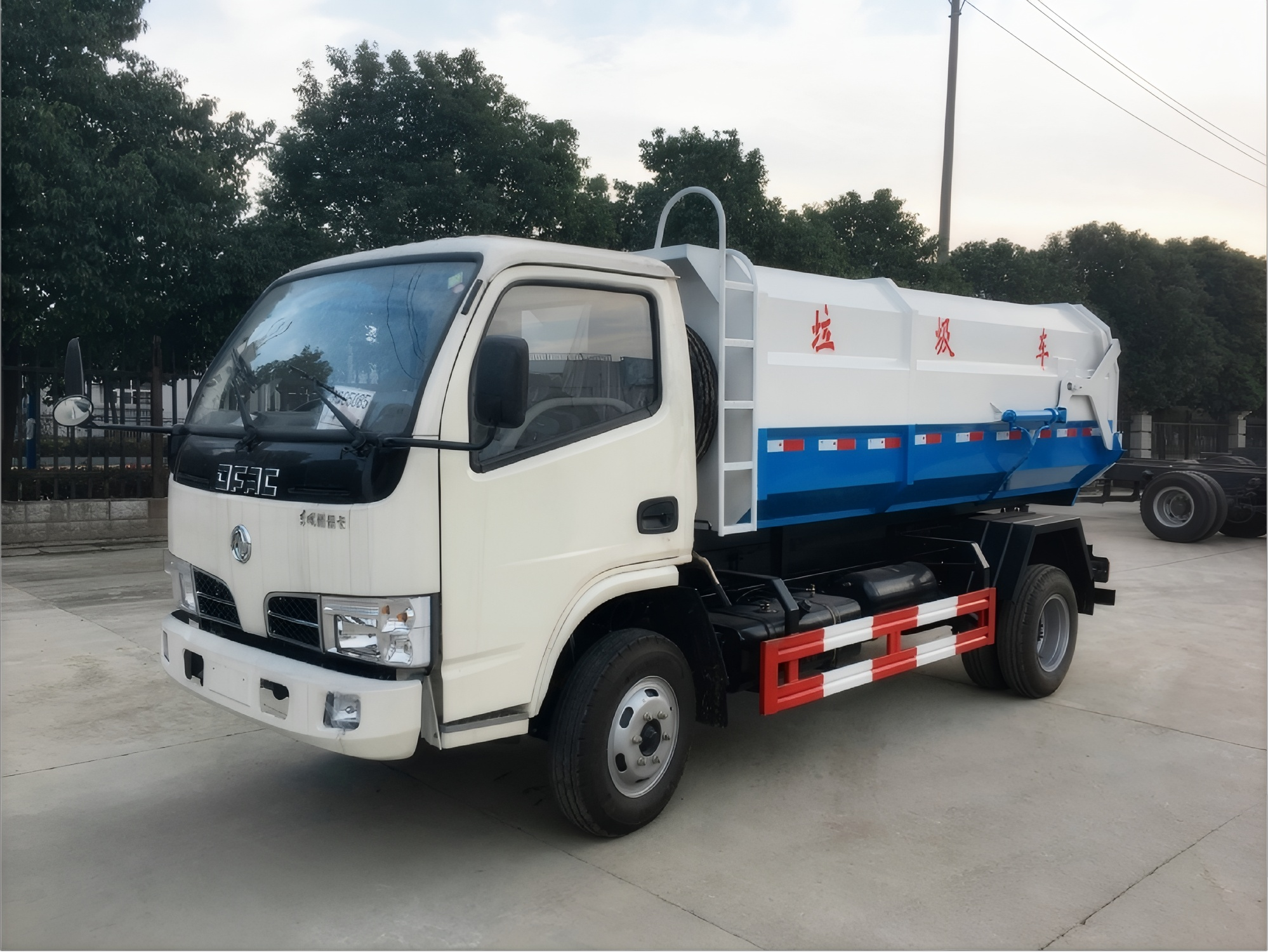

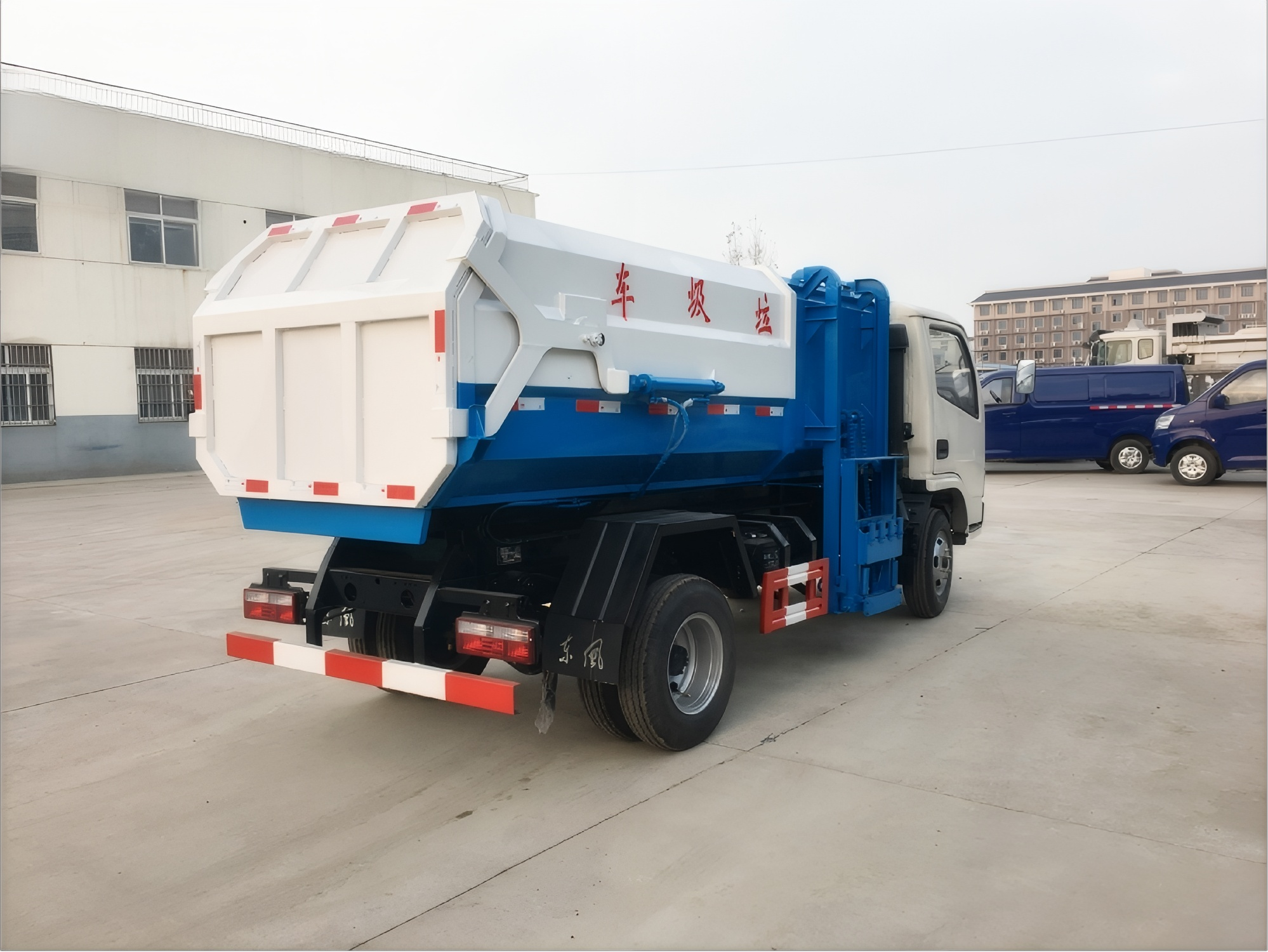

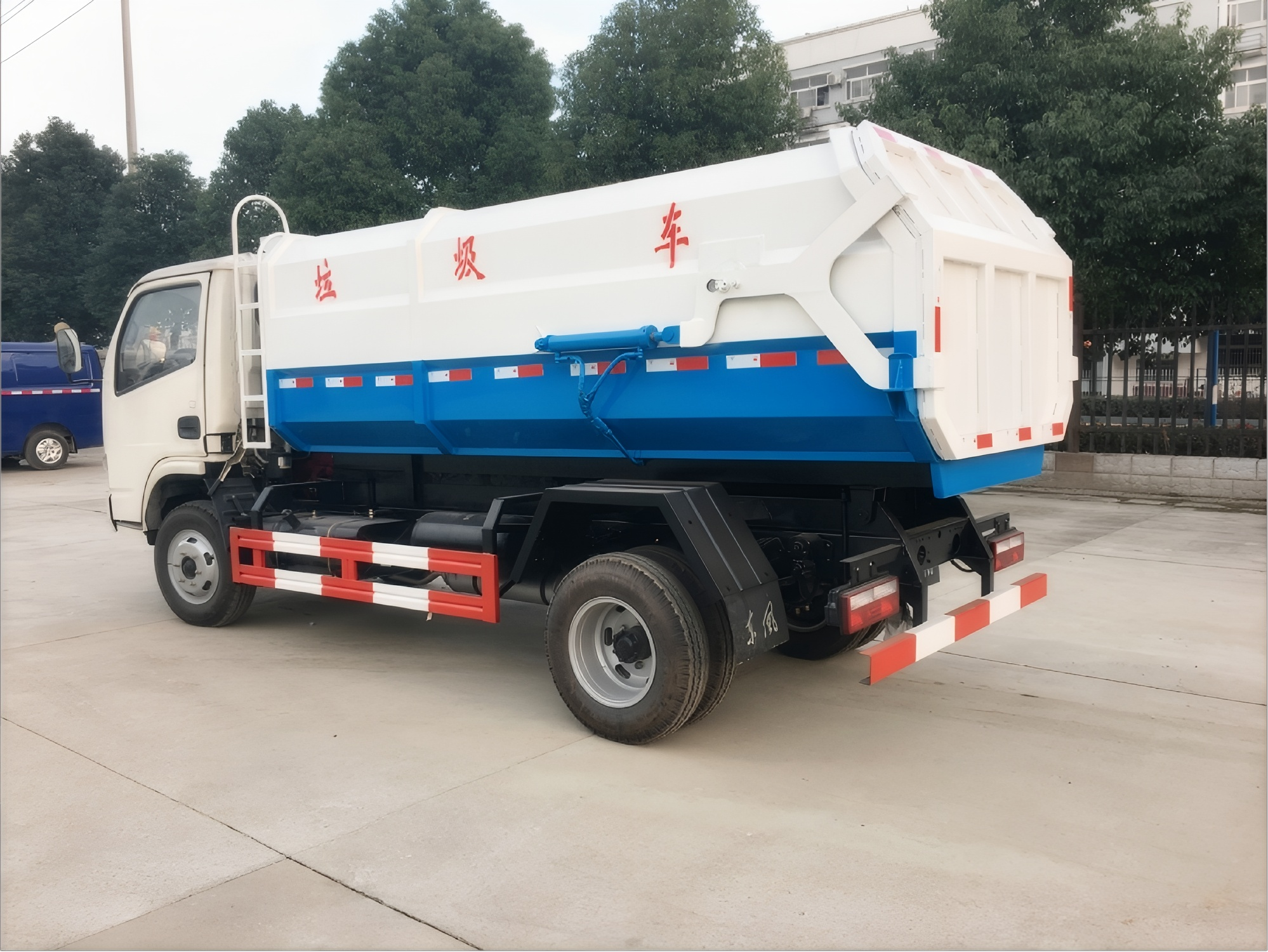

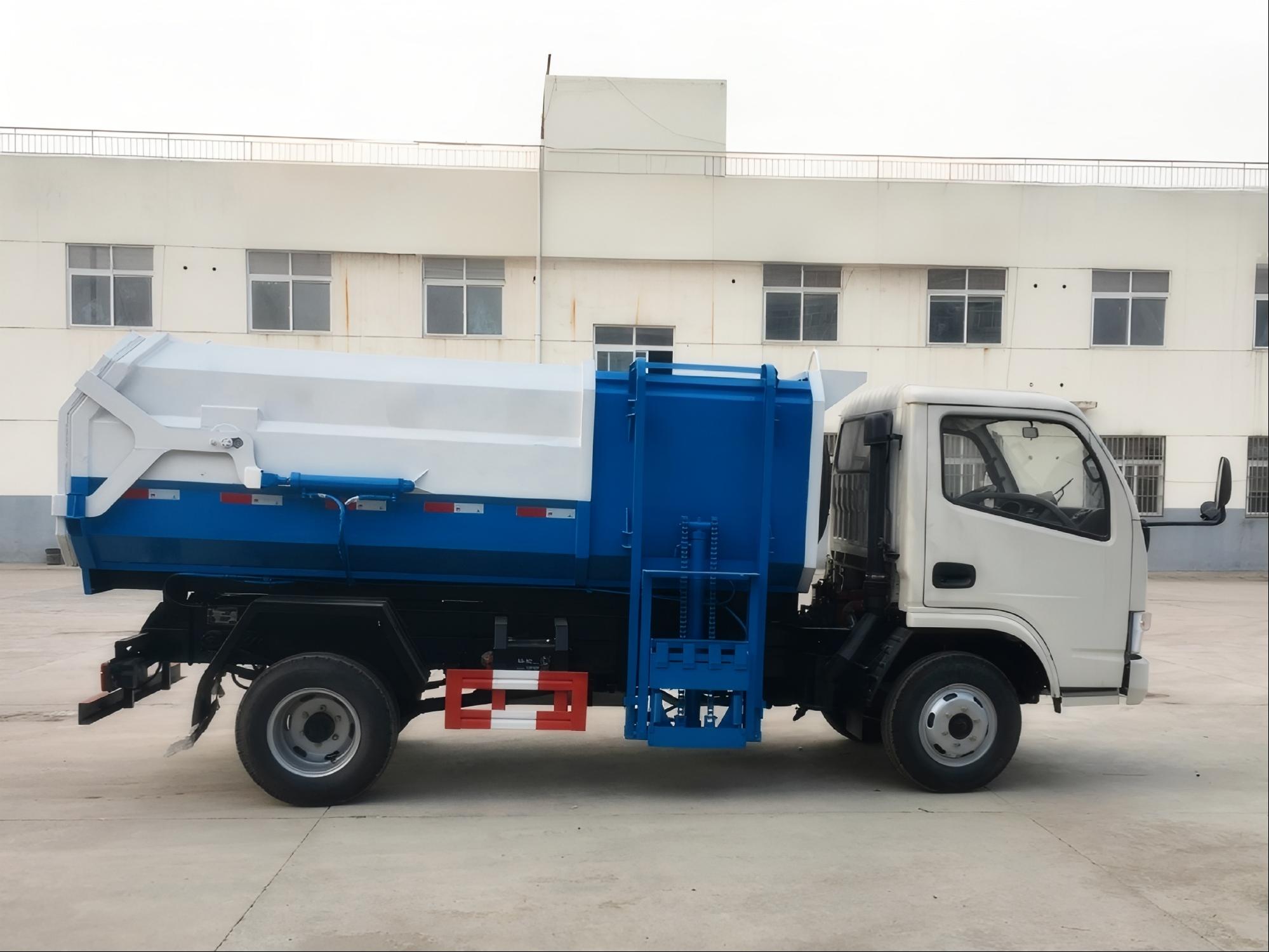

Dongfeng 8CBM 4X2 Side Loader Garbage Truck
Payload Capacity: 2T to 10T
Body Volume: 3CBM to 18CBM
Wheelbase: 2800mm to 4500mm
Engine Power: 110HP to 240HP
Transmission Gears: 5 – 8 Speeds
Tire Specification: 7.00R16 – 10.00R20
Hydraulic System Pressure: 16 – 20 MPa
Bucket Lifting Time: 20s to 35s
Category：Side Loader Garbage Truck
Introduction
Side Loader Garbage Truck — also widely known as Bucket Lifter Garbage Truck or Self-Loading Waste Collection Vehicle. Manufactured in Suizhou, China’s hub for specialized sanitation equipment with decades of engineering expertise, this vehicle is designed for efficient waste collection in urban, rural, and desert environments.
Ideal for municipalities, residential areas, and industrial zones, it excels in automated bucket lifting, sealed waste containment, and durable performance — tackling harsh climates, dust, and heavy usage with ease. Its adaptability to local waste management needs, paired with Suizhou’s robust supply chain and quality assurance, makes it a reliable, cost-effective solution for modern sanitation.
Advantages
1. Side Loading Garbage Truck change the dirty appearance of the city and eliminate the secondary pollution
2. Easy Full Automatic Operation: computer control system for loading and unloading operations.
3. One Person Operation: Reducing sanitation working, greatly improves the working environment.
4. Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.
Main feature
1.Truck chassis: ISUZU,Dongfeng, HOWO,Foton, Shacman, JAC, JMC, FAW, CAMC etc.
2. Garbage bin box size various from 5cbm, 6cbm,8cbm,10cbm, 12cbm, 14cbm, 16cbm, 18cbm, 20cbm, 22cbm.
3. Garbage bin box material: high intense carton steel, from Well-known steel mills in China.
4. PLC control system from driver cabin and rear side of truck, easy operate by the workers.
Technical Datas
| Vehicle Technical Parameters | Gross Mass | 7,360 kg |
| Curb Weight | 4,850/5,080 kg | |
| Rated Payload | 2,380/2,150 kg | |
| Overall Dimensions | 5,995×2,160×2,680 mm | |
| Number of Passengers in Cab | 2 | |
| Maximum Speed | 99 km/h | |
| Chassis Technical Parameters | Wheelbase | 3,308 mm |
| Tire Specification | 7.00R16 Steel-belted Radial Tires | |
| Fuel Type | Diesel | |
| Emission Standard | Euro VI | |
| Engine | Yunnei 110 HP/140 HP, Chaochai 130 HP | |
| Transmission | Wanliyang 5-speed | |
| Body Technical Parameters | Effective Volume of Tank | Approx. 5 CBM |
| Tank Material | Side 3mm & Bottom 4mm Manganese Steel | |
| Discharge Method | Hydraulic Dumping | |
| Bucket Lifting Time | ≤25s | |
| Bucket Lowering Time | ≤20s | |
| Rear Cover Opening Angle | 70° | |
| Maximum Pressure of Hydraulic System | 16 MPa | |
| Compatible Trash Bins | 240L Standard Plastic or Iron Bins | |
| Functional Configuration | Waste Collection | Automatic bucket lifting via hydraulic mechanism for dumping waste, compatible with various bin sizes |
| Discharging | Hydraulically controlled rear door opening for thorough waste dumping | |
| Sealing | Rear door with sealing strips to prevent sewage leakage and secondary pollution | |
| Operation | Manual/electric control supported, optional one-key operation in the cab |
