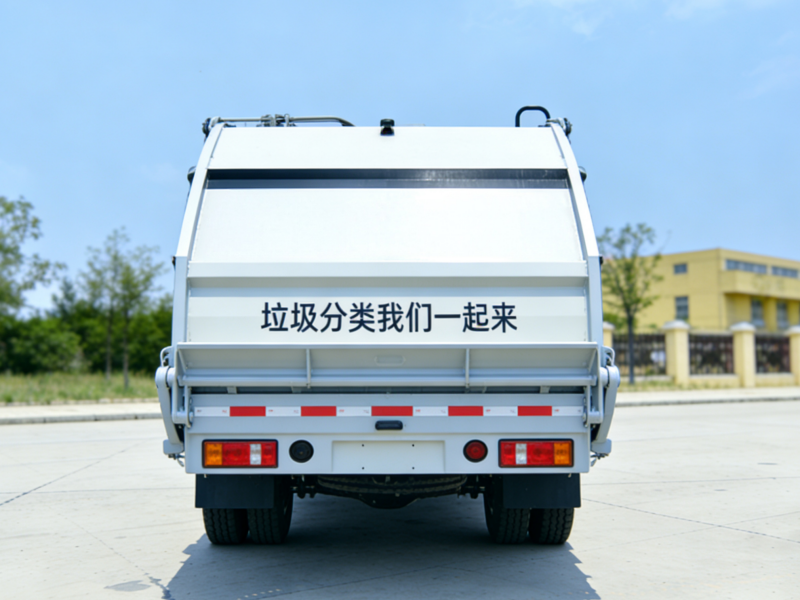

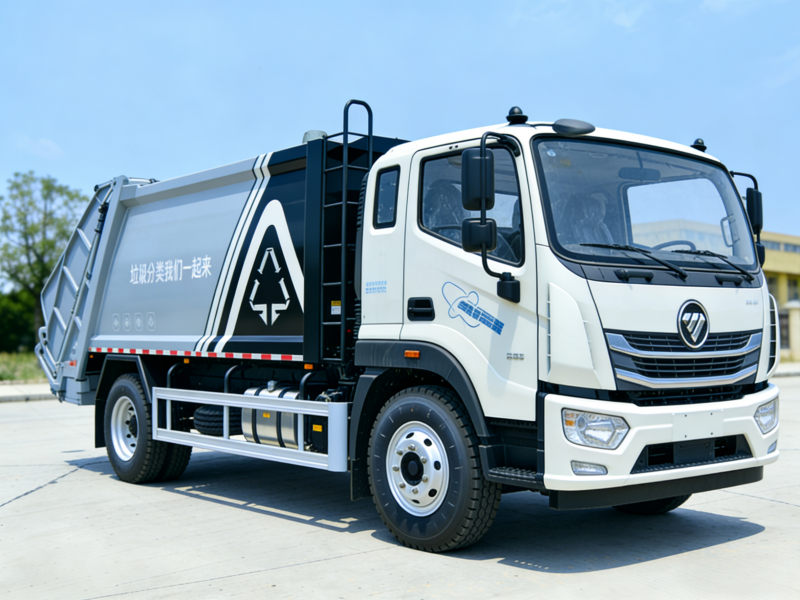

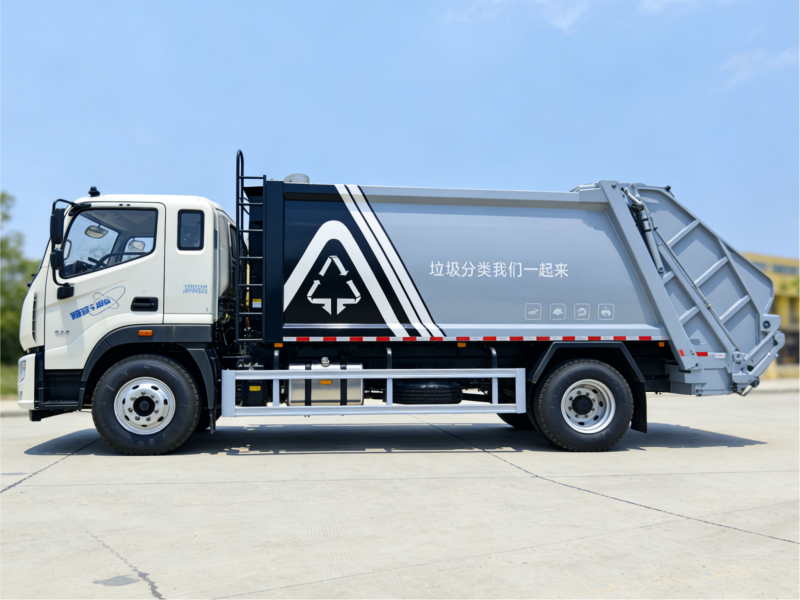

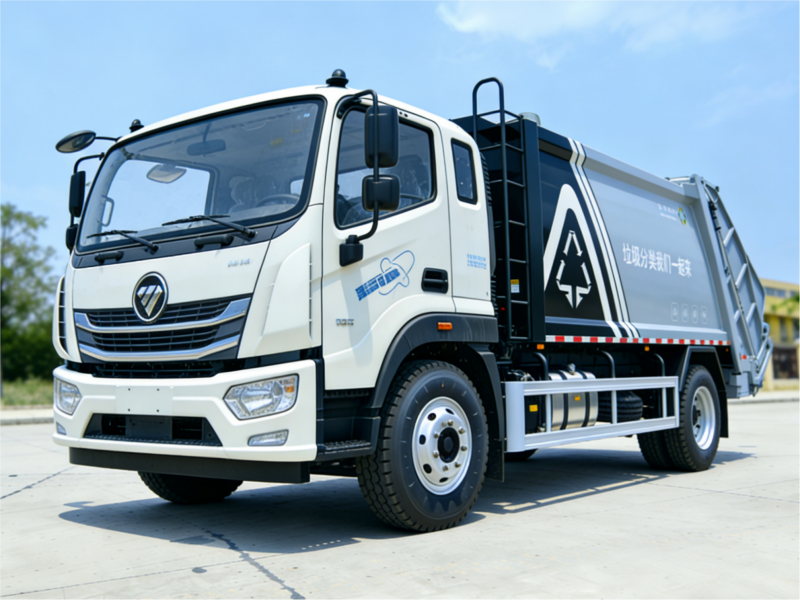

FOTON 4X2 18CBM Garbage Compactor Truck
Driving Type: 4×2 LHD/RHD
Wheelbase: 3950mm/4500mm/5150mm
Engine Power: 245HP
Transmission: Fast 8-speed Gearbox
Tire: 10.00R20 Steel Radial Tires
Overall Dimension: 9580×2550×3400mm
Compactor Body Capacity: 12/14/16/18CBM
Delivery Time: Within 30 Days
Category：Garbage Compactor Truck
Introduction
Garbage Compactor Truck, also known as compressed garbage truck, refuse compactor truck, waste compression truck, municipal garbage truck, waste management truck, sanitation compactor truck, rear loading garbage truck, waste collection vehicle, sanitation truck, rear loader garbage truck.
This high-efficiency garbage compactor truck features a heavy-duty hydraulic system capable of compressing waste to significantly reduce volume. The vehicle integrates automatic loading, compacting, and unloading functions, greatly improving the productivity of sanitation teams.
The FOTON 4X2 18CBM Garbage Compactor Truck is designed for efficient municipal waste collection and transportation. Its large-capacity 18CBM sealed body and powerful hydraulic compression system greatly increase loading density while reducing transportation frequency, making it ideal for daily sanitation operations.
KEY ADVANTAGES
- Eco-friendly sealed design to eliminate odor and leakage
- Large compaction chamber suitable for high-density waste
- Flexible mobility with a compact 4×2 chassis for narrow roads
- Reliable Foton engine offering strong power and fuel efficiency
TECHNICAL DATAS
| Wheelbase | 3950/4500/5150mm |
| Overall Dimensions | Length: 9580/9440/8930/8790/8010/7870mm |
| Width: 2550mm | |
| Height: 3400mm | |
| Gross Vehicle Weight (GVW) | 18000 kg |
| Curb Weight | 12500/12000/11400 kg |
| Rated Payload | 5370/5305/5870/5805/6470/6405 kg |
| Effective Volume | 12/14/16/18CBM |
| Feeder / Hopper Volume | 2.4 CBM |
| Engine | 245 HP |
| Transmission | Fast 8-speed with power take-off (PTO) |
| Rear Axle | 10T |
| Frame | 250mm-height Double-layer |
| Tires | 10.00R20 steel-belted tires |
| Leaf Springs | 10/10+8 |
| Chassis Configuration | – Air suspension seat |
| – Multifunctional steering wheel | |
| – Cruise control | |
| – Electronic control/air conditioning | |
| – Central locking & power windows | |
| – Remote key | |
| – Middle seat | |
| – Driving recorder | |
| – Manual main power switch | |
| – 24V power socket |
