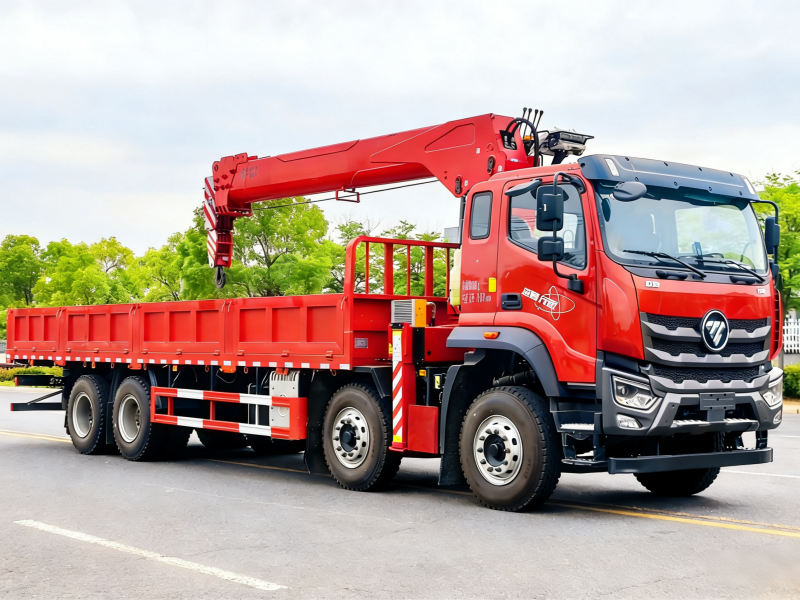

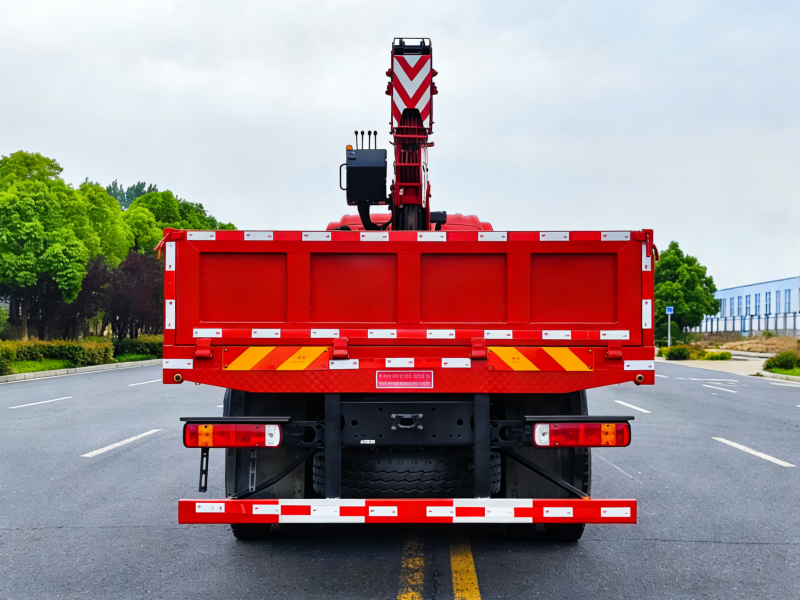

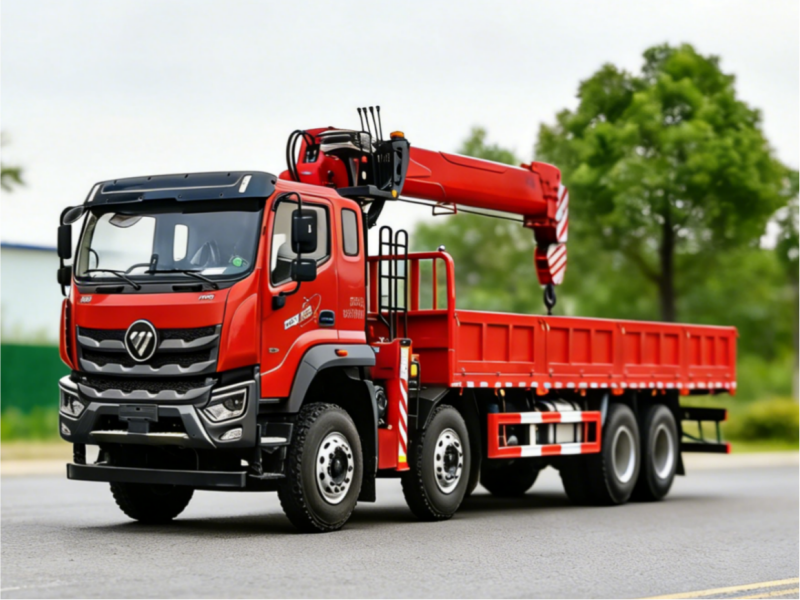

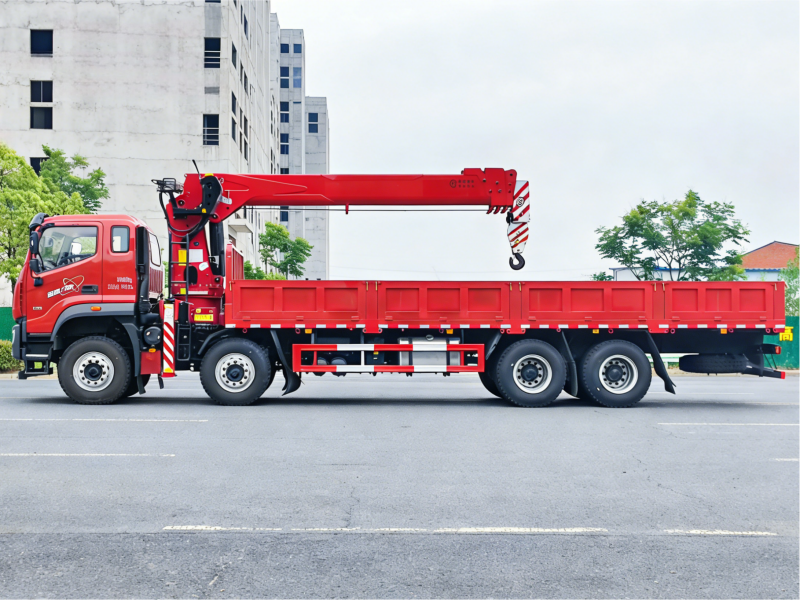

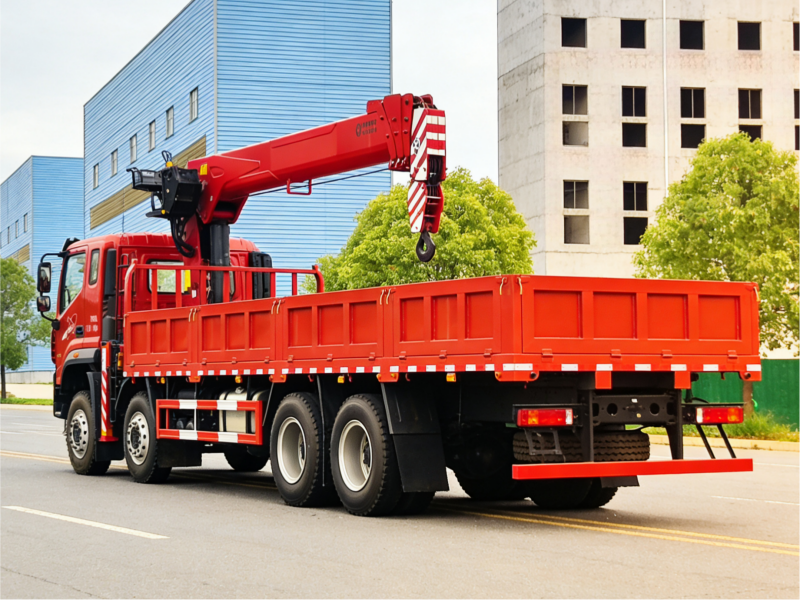

FOTON 8X4 Truck-Mounted Crane for Loading and Unloading
Driving Type: 8×4 LHD/RHD
Wheelbase: 2100+4575+1350mm
Engine Power: 350HP
Transmission: Fast 10-Speed Gearbox
Cargo Box Length: 8.2m – 8.6m
Crane: 12T, 14T, 16T, 18T
Boom Length: 21.9m
Lifting Height: 24.0m
Category：Crane Truck
Introduction
Truck-Mounted Crane also called Truck Crane, Crane Truck, Truck Loader Crane, Knuckle Boom Truck, Lorry Crane, Cargo Truck with Crane, Telescopic Boom Truck Crane, Mobile Truck-Mounted Hoist, Articulated Crane Truck, Folding Arm Truck Crane, etc.
The truck mounted crane is a multifunctional lifting and loading vehicle designed for efficient material handling on construction sites, logistics centers, municipal projects, and field operations. It integrates a hydraulic crane with a cargo truck, enabling operators to lift, load, and transport heavy materials with one vehicle.
KEY ADVANTAGES
- Hydraulic lifting, loading, and unloading
- 360° rotation (full or limited rotation depending on model)
- Compact boom design for narrow working spaces
- Cargo transport + lifting combined in one vehicle
- Easy operation, low maintenance
TECHNICAL DATAS
| Wheelbase | 2100+4575+1350mm |
| Cargo Box Dimensions | Length: 8200-8600mm |
| Width: 2450mm | |
| Height: 550/600/800mm | |
| Crane Configuration | 12T/14T/16T/18T |
| Arm length: 21.9m (5-Section) | |
| Lifting height: 24.0m | |
| Single/Dual-Cavity Hydraulic Rear Outrigger | |
| Engine | Yuchai 350 HP |
| Transmission | Fast 10-speed with power take-off (PTO) & remote throttle |
| Rear Axle | 13T |
| Frame | 305mm-height Tripe-layer |
| Tires | 11.00R20 steel-belted tires |
| Chassis Configuration | – Air suspension seat |
| – Multifunctional steering wheel | |
| – Cruise control | |
| – Electronic control/air conditioning | |
| – Central locking & power windows | |
| – Remote key | |
| – Middle seat | |
| – Driving recorder | |
| – 3.5-inch segment display instrument | |
| – Manual main power switch | |
| – 24V power socket | |
| Double U-bolt Thickened Leaf Spring |
