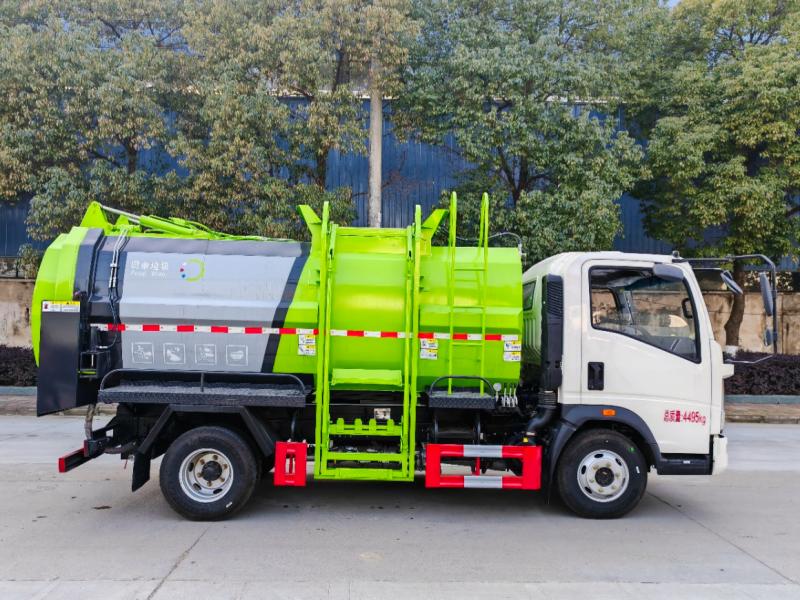

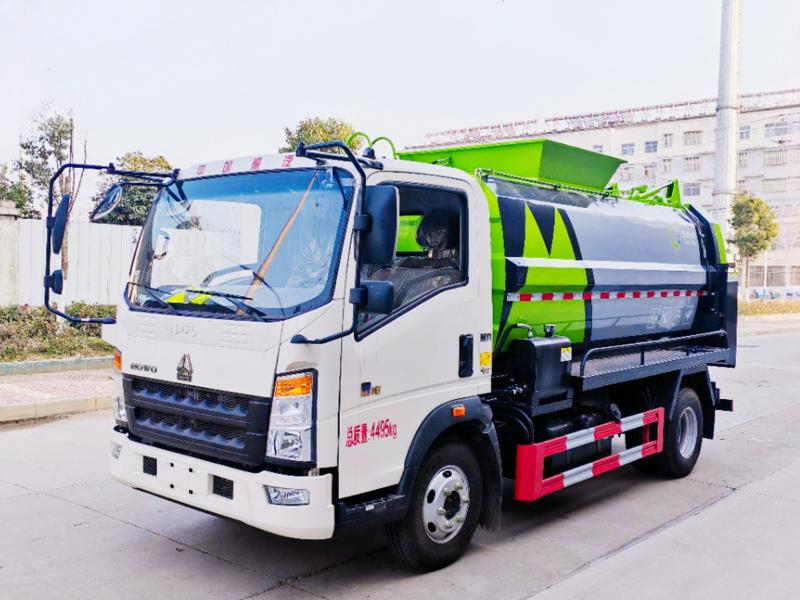

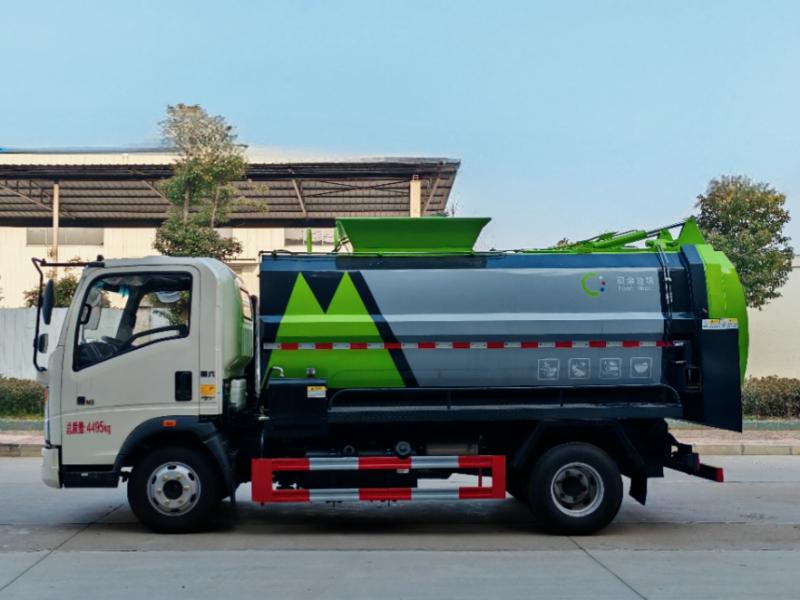

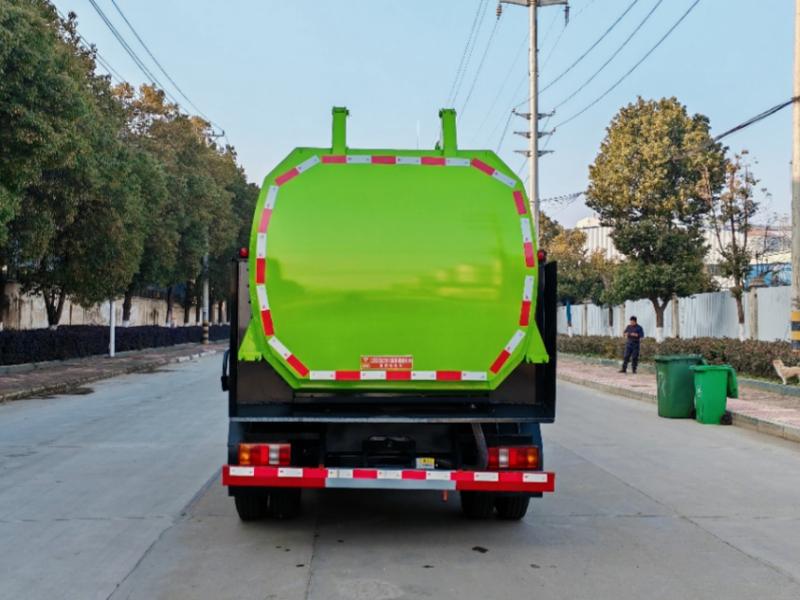

Food Waste Garbage Truck

Food Waste Garbage Truck also called Kitchen garbage truck. It is a special vehicle used to collect and transport domestic waste, food waste (swill) and urban sludge. Food and kitchen waste is collected by side bucket loading and unloaded by self-unloading. Advanced curved feed port design with a perfect hydraulic scraper system to make loading faster and smoother, the tail door seal hydraulic locking system to ensure that the transportation of water. Main structure: automobile chassis, garbage box, bottom frame side bucket lifting mechanism, rear door assembly, hydraulic scraper system, hydraulic system and electric control system. The hydraulic system and electronic control system are composed of oil pump, oil cylinder, mailbox, electro-hydraulic valve, PLC unit, stroke switch and switch. At the same time, this product is equipped with high-pressure cleaning system, automatic weighing system and satellite positioning Internet system, with its own water tank, you can wash the car and the trash can on site. It is an ideal tool for urban food waste collection and transportation.

Classificaton

1. Rear Loader Compactors: Rear loader compactor trucks are the most common type of garbage trucks, equipped with a hydraulic compactor at the rear of the vehicle. The waste is loaded into the truck from the rear hopper and compacted to maximize the storage capacity.

2. Front Loader Compactors: Front loader compactor trucks are designed with a hydraulic compactor at the front of the vehicle, allowing for easier and faster loading and compacting of waste. These trucks are commonly used for commercial and industrial waste collection

3. Side Loader Compactors: Side loader compactor trucks have a hydraulic compactor on the side of the vehicle, allowing for efficient collection of waste along narrow streets and alleys. These trucks are commonly used in residential areas with limited access for larger garbage trucks.

Technical Data
