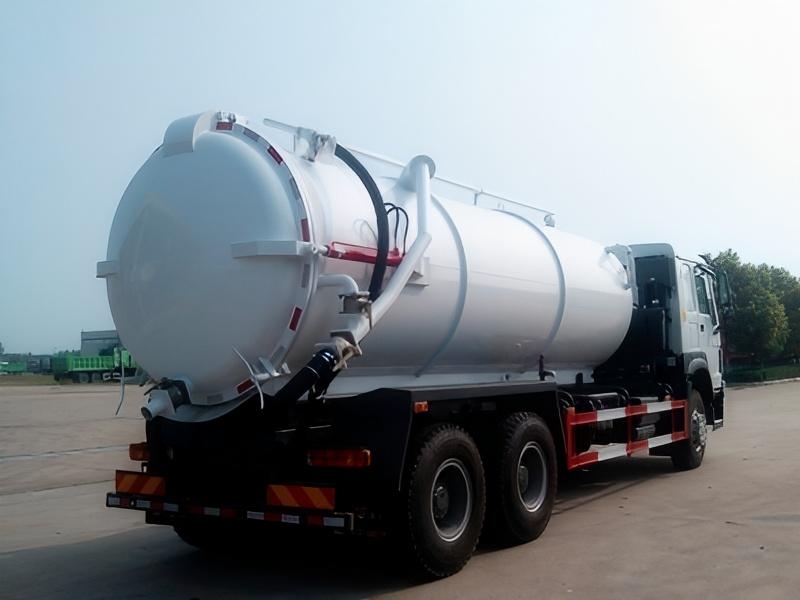

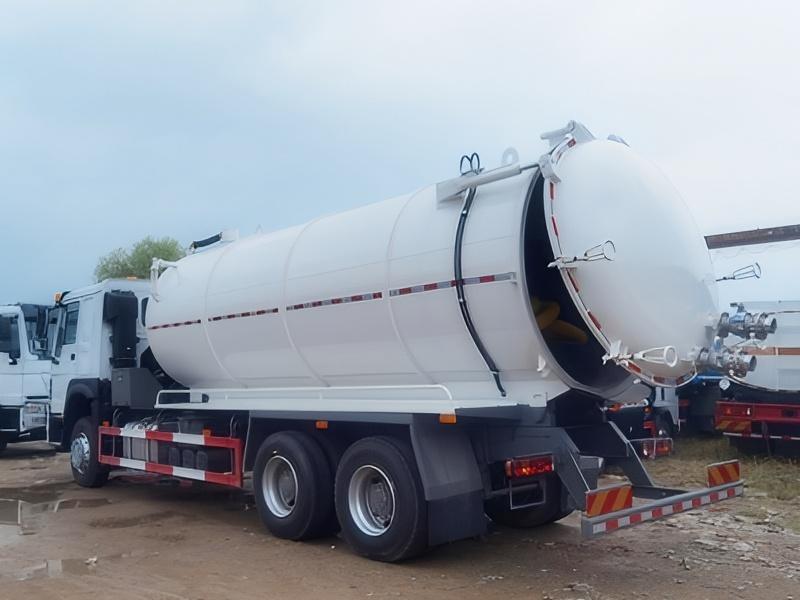

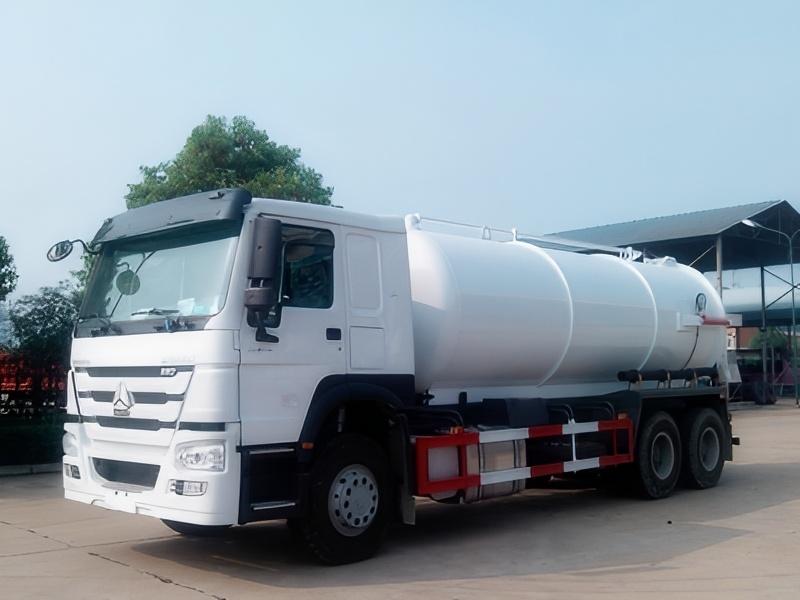

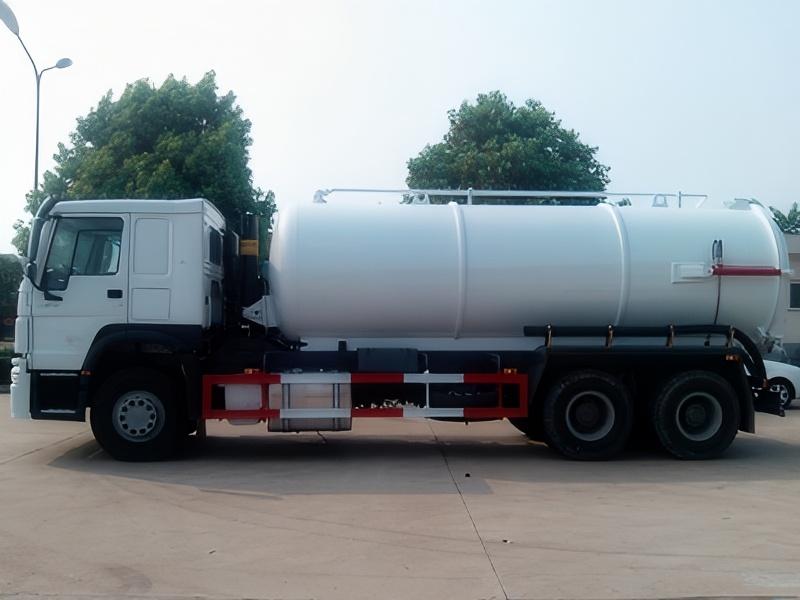

Sinotruk Howo 6X4 Vacuum Sewage Suction Tanker Truck
Vacuum Suction Power: 160-220 kPa
Tank Capacity: 8-20 m³
Tank Material & Corrosion Resistance: Q235B carbon steel / 304 stainless steel (optional) with anti-corrosion coating
Maximum Payload: 10-18 Tons
Suction/Unloading Time: Suction: 5-8 minutes / Unloading: 3-5 minutes (for full tank)
Axle Configuration: 2-Axle / 3-Axle (optional)
Tire Specification: 10.00R20 / 11.00R20 tubeless tires (6-10 pcs + 1 spare)
Power Source: Weichai/Yuchai/ISUZU engine (160-300 HP)
Category：Vacuum Truck
Introduction
Vacuum Sewage Suction Tanker Truck also known as Vacuum Sewage Truck, Sewage Suction Truck, Vacuum Tanker, Fecal Suction Truck, or Sludge Suction Truck (with names tailored to specific waste types), this heavy-duty sanitation vehicle is equipped with a high-powered vacuum system and sealed storage tank. It efficiently suctions, collects, and transports liquid waste—including sewage, industrial sludge, fecal matter, and septic tank residues—while preventing leakage and environmental contamination. Designed for durability and versatility, it is widely used in municipal sanitation projects (urban sewer cleaning and maintenance), rural area hygiene improvements, industrial wastewater disposal (for factories, petrochemical plants, and construction sites), commercial/resident septic tank cleaning, and emergency waste management in both urban and remote regions.
Customization
With our loaded practical experience and thoughtful solutions, we now have been identified for a trusted provider for numerous intercontinental consumers for Mounted Crane Truck, Howo Cement Mixer Truck, TRACTOR TRUCK. We take the standard business operation procedure and the extremely competitive price to produce the satisfied product for you. With the development of the business and the huge demands of the society, we become more multifunctional in recent years, and set up all sorts of businesses to meet the needs of our clients. Customer satisfaction is our pursuit. We ensure “zero-defect” production at every station of every process.
Technical Datas
| HOWO SEWAGE SUCTION TRUCK | ||
| Technical Performance | Chassis | ZZ1167M4611W |
| Drive | 4X2 | |
| Overall Dimensions(mm) | 8377*2496*3100 | |
| Transmission | HW15710 | |
| Wheelbase(mm) | 4600 | |
| Tread(mm) | 1830 | |
| Rated Load Capacity(kg) | 30,000 | |
| Net Vehicle Weight(kg) | 9,000 | |
| Overall Weight(kg) | 30,000 | |
| Max Speed(km/h) | 90 | |
| Engine | Type | WD615.87/WD615.69/WD615.47 |
| Displacement(cc) | 9726 | |
| Max Output Power(hp/rpm) | 290/336/371 | |
| Brake Type | Driving Brake | Dual circuit compressed air brake |
| Parking Brake | Spring energy compressed air operating on rear wheels | |
| Auxiliary Branke | Engine exhaust valve brake | |
| Vacuum air pump | Rated Revolution(r/min) | 500 |
| Rated Power(kw) | 6 | |
| Air Displacement(m3/min) | 5 | |
| Pump Speed(L/S) | 98 | |
| Tank Capacity(m3) | 10 | |
| Working pressure(pa) | 8500 | |
| Tire | 12.00R20 Radial | |
| Light Hand Driving | Yes | |
| Air Conditioner | Yes | |
| ABS(WABCO) | Optional | |
| 12.00R22.5 tire | Optional | |
| Shock absorption driver seat | Yes | |
| Tool Box 1 Set | Yes | |
| Technique and Maintaining Booklet | Yes | |
| Cab Seating Capacity(includes driver) | 2 persons and One sleeping bed | |
