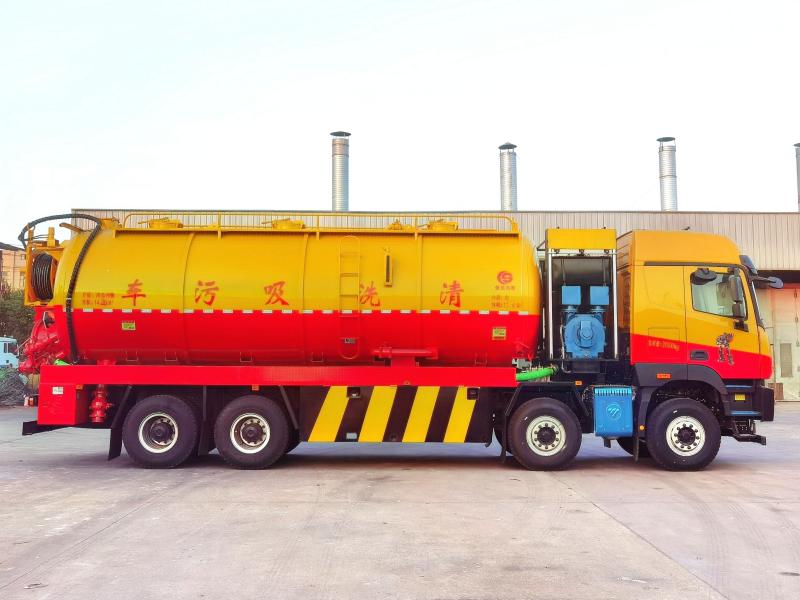

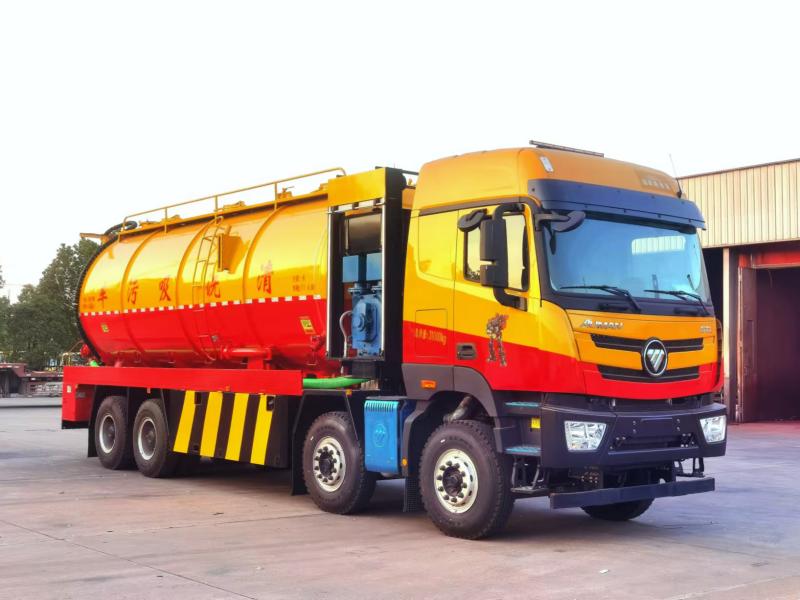

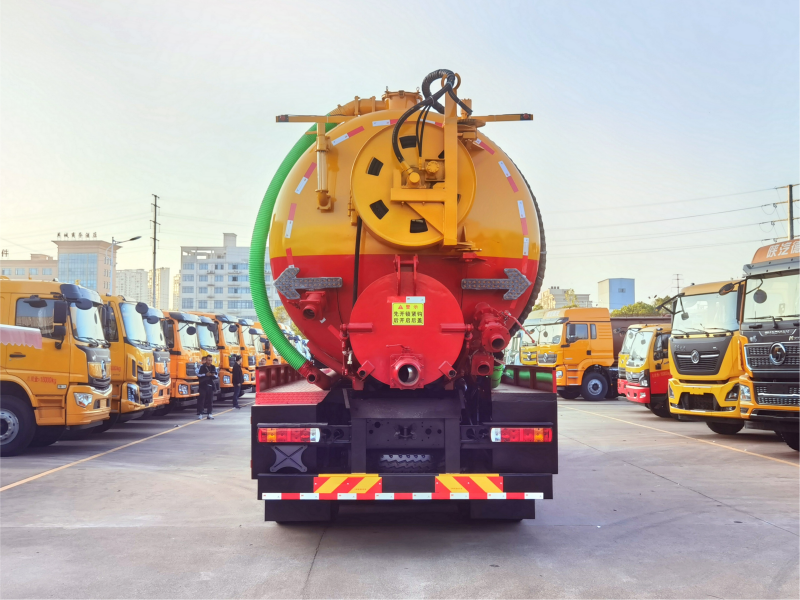

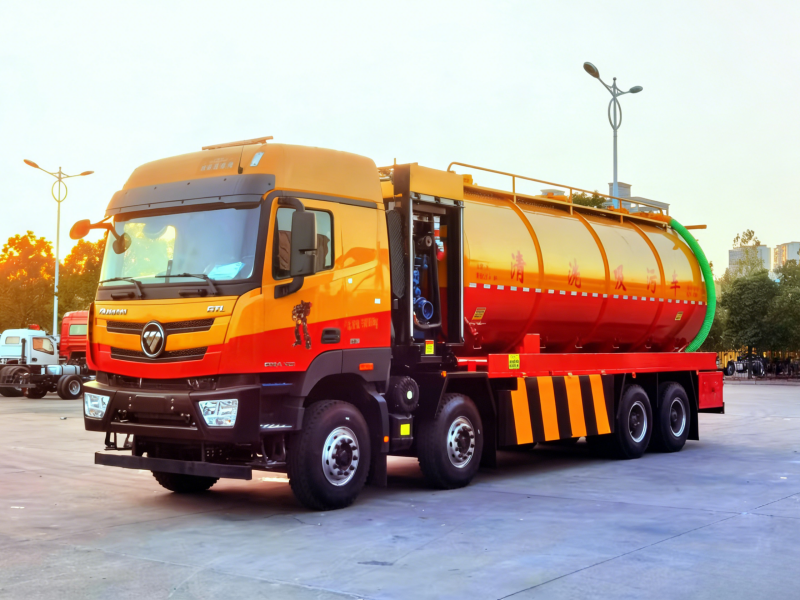

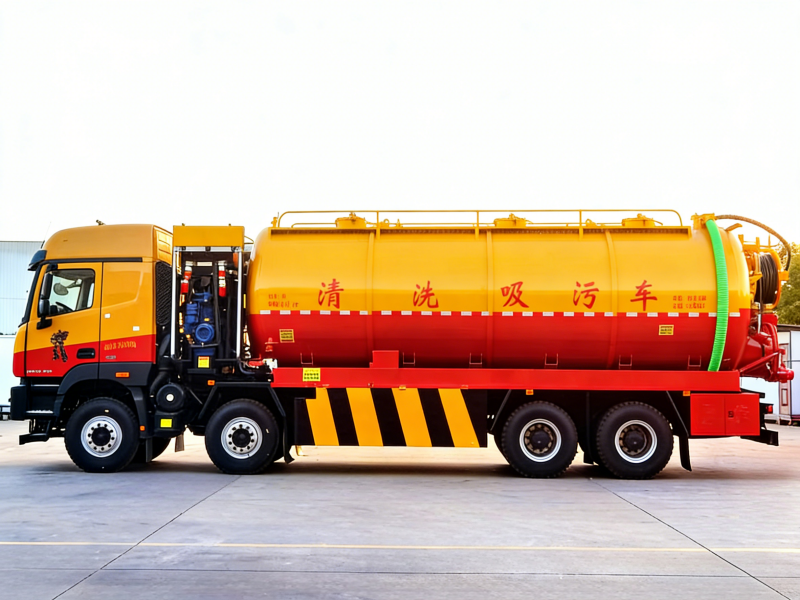

FOTON 8X4 Vacuum Sewage Suction Truck
Driving Type: 8×4 LHD/RHD
Wheelbase: 2100+4400+1400mm
Engine Power: Cummins 490HP
Transmission: Fast Gear 12-Speed
Tire: 12.00R20 Tyres
Overall Dimension: 10600 X 2550 X 3950mm
Tank Capacity: 31000L
Delivery Time: Within 30 Days
Category：Vacuum Truck
Introduction
Sewage Suction Truck, also known as Vacuum Tanker Truck, Sludge Suction Truck, Septic Tank Cleaning Truck, Sewage Vacuum Truck, Waste Suction Truck, Vacuum Pump Truck. The Foton vacuum sewage truck is specially designed for suction, collection, transportation, and discharge of liquid waste, including sewage, sludge, fecal matter, oily wastewater, and industrial residues. It uses a powerful vacuum pump system to ensure efficient and hygienic waste handling.
The Foton vacuum sewage truck is a reliable, efficient, and cost-effective solution for modern sanitation and wastewater management. With its strong performance, versatile usage, and proven chassis quality, it is an ideal choice for sanitation departments, contractors, and environmental service companies worldwide.
Application Scenarios
- Municipal sewer and drainage maintenance
- Septic tank cleaning and emptying
- Urban and rural sanitation projects
- Industrial wastewater and sludge removal
- Chemical plants, factories, and workshops
- Construction sites and underground pipelines
- Environmental protection and emergency cleaning operations
KEY ADVANTAGES
- High-efficiency vacuum system with strong suction power
- Large-capacity tank for extended operation time
- Reliable Foton chassis, known for durability and stable performance
- Easy operation and maintenance, reducing labor costs
- Sealed tank design, preventing leakage and secondary pollution
- Excellent adaptability to complex road and working conditions
TECHNICAL DATAS
| Basic Vehicle Information | |
| Vehicle Model | FOTON 8X4 Sewage Suction Truck |
| Chassis Brand | FOTON |
| Drive Type | 8×4 |
| Wheelbase | 2100+4400+1400 mm |
| Engine Power | 490 HP |
| Transmission | Fast Gear 12-Speed Manual Transmission |
| Sewage Handling System | |
| Tank Capacity | 22 cubic meters |
| Vacuum Pump Model | Vacuum Pump |
| Suction Performance | Suction depth: ≤ 9 meters; suction speed: ≥ 60 m³/h |
| Discharge Method | Hydraulic self-discharging+gravity discharge |
| High-Pressure Cleaning Unit | 16 MPa high-pressure pump Cleaning flow rate: 60 L/min Hose length: 20 m |
| Dimensions & Weight | |
| Overall Dimensions (L×W×H) | 10600 × 2550 × 3950 mm |
| Curb Weight | 16800 kg |
| Gross Vehicle Weight (GVW) | 31000 kg |
| Additional Configurations | |
| Operating Controls | Cab-mounted electric control panel Rear manual emergency stop |
| Safety Devices | Overflow alarm, pressure relief valve, fire extinguisher |
| Optional Equipments | Rotating cleaning nozzle Stainless steel tank Cold-proof insulation layer |
