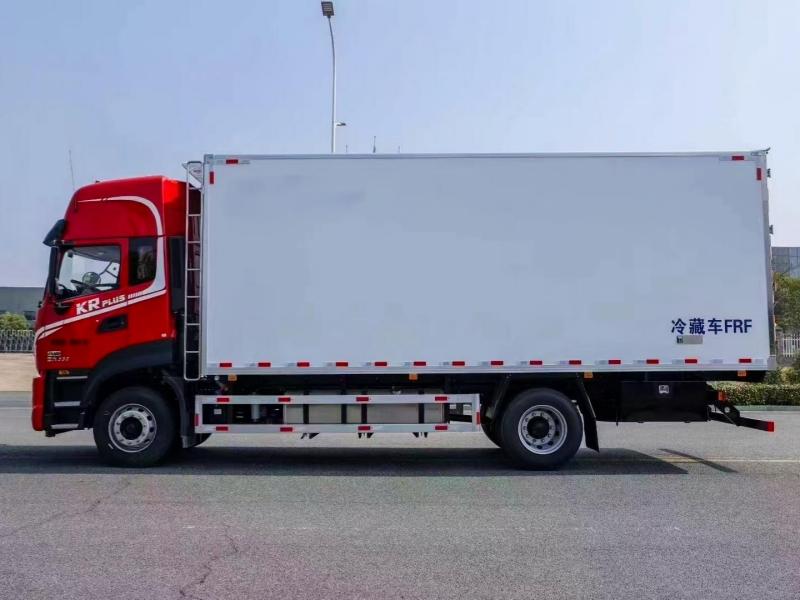

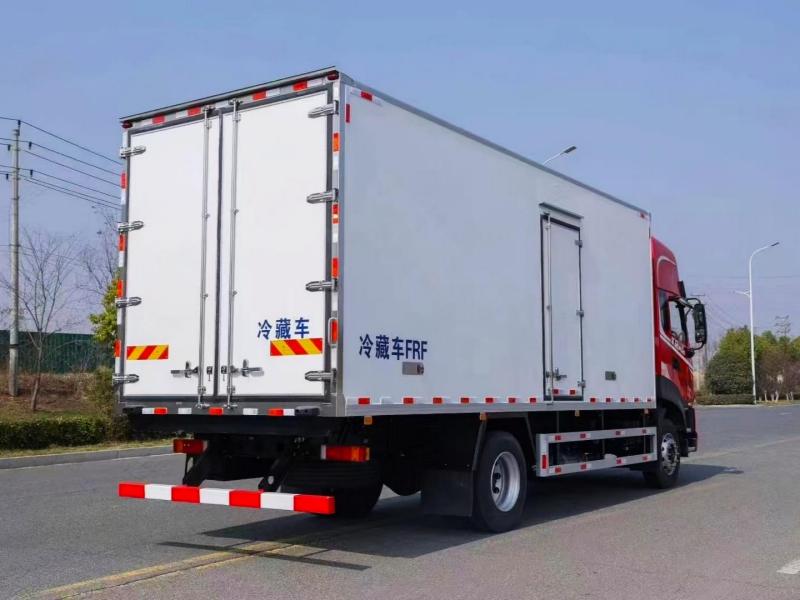

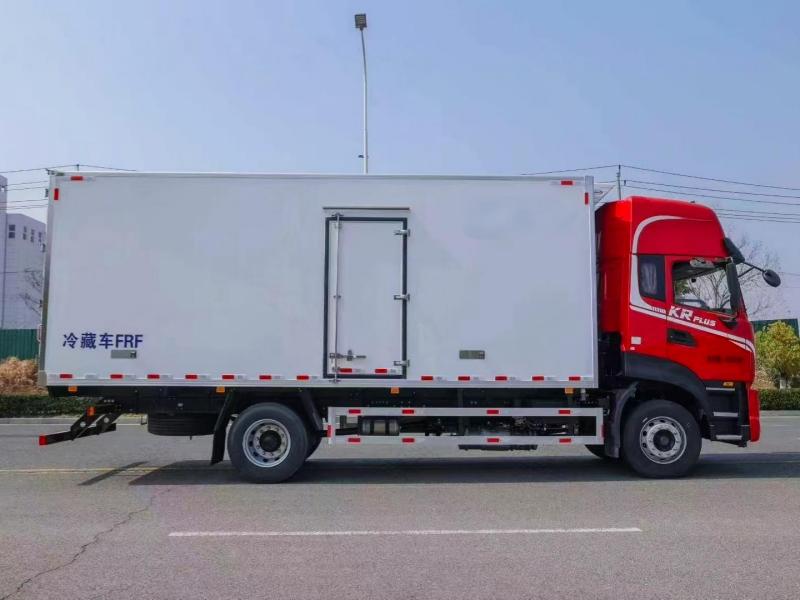

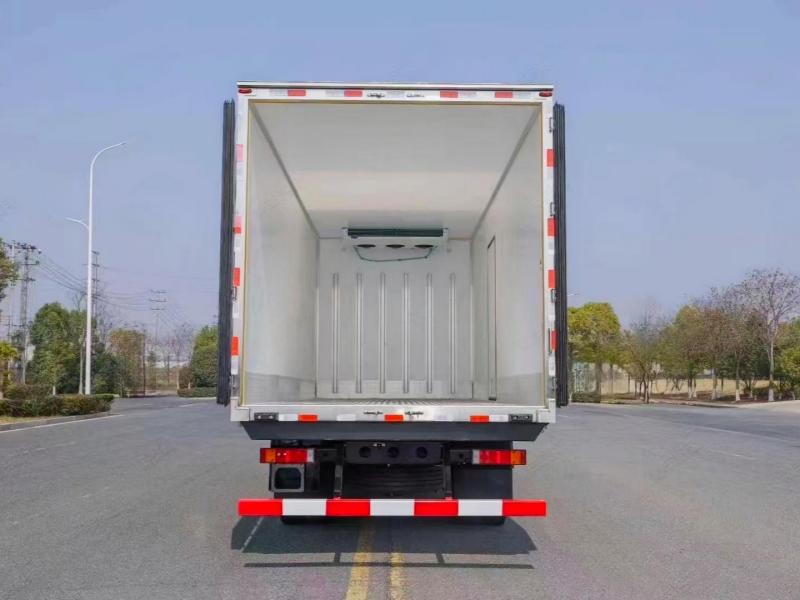

Dongfeng 4X2 10 Ton 6.8M Refrigerated Cargo Truck
Chassis Brand: DONGFENG
Drive Type: 4×2
Wheelbase: 5000mm
Overall Dimension: 9200X2600X3960mm
Van Body Size: 6800×2300×2200mm
Load Capacity: 10T
Emission Standard: Euro 2/3/4/5/6
Color: Customized
Category：Refrigerated Truck
Introduction
Refrigerated truck, also known as a reefer truck, cooling truck, refrigerated van. It is a type of freezer truck that is equipped with a refrigeration unit to transport temperature-sensitive goods such as perishable food products, pharmaceuticals, flowers, and other temperature-sensitive materials. The temperature control system inside the refrigerated truck can keep the cargo at a specific temperature range, usually between -20°C and 20°C, to preserve the quality and freshness of the goods during transportation.
As a refrigerated truck manufacture, Hubei Hengshengda Automobile Co., Ltd. are specialized in manufacturing 1ton to 60tons refrigerated truck/trailer and exports a large number of trucks/trailers over 130 countries every year. Our high quality refrigerated trucks have a competitive advantages in the market both in price and quality.
Main Application Scenarios of Refrigerated Truck
1. Food transportation: refrigerated trucks are widely used in the transportation of all kinds of food items, such as meat, dairy products, fruits, vegetables and so on. These perishable goods require specific temperature conditions to prevent spoilage and maintain their quality during transportation.
2. Pharmaceutical transport: refrigerated trucks is in the transport of pharmaceutical products such as vaccines, insulin, and other medications that require strict temperature control. These sensitive products can easily degrade if exposed to temperature fluctuations,
3. Floral delivery: Flowers and plants are also commonly transported using refrigerated trucks to preserve their freshness and extend their shelf life. Many florists and flower wholesalers rely on refrigerated trucks to deliver their products to customers without compromising the quality or aesthetic appeal of the flowers.
4. Biomedical transport: Refrigerated trucks are often used to transport biological samples, organs for transplant, and other medical supplies that require refrigeration to prevent contamination or degradation.
Technical Datas
| Product name | Refrigerator truck | ||
| Gross weight(Kg) | 15800 | Drive type | 4X2 |
| Payload(Kg) | 10000 | Overall dimension(mm) | 9200X2600X3960mm |
| Curb weight(Kg) | 7805 | Cab seats | 3 |
| Approach/departure angle(°) | 20/13 | Front/rear hang(mm) | 1430/2570 |
| Axle No. | 2 | Wheelbase(mm) | 5000/5600 |
| Chassis specification | |||
| Chassis model | DFL1160 | Manufacturer | Dongfeng Auto Co.,Ltd |
| Brand name | Dongfeng | Emission standard | Euro 3 |
| Tyre specification | 9.00R20 | Tyre No. | 6 |
| Fuel type | Diesel | Transmission | 6/8 forward gear |
| Cab | Single row, luxurious interiors and seats with power steering. Air condition is optional. | ||
| Engine model | Engine manufacturer | Power(hp) | |
| B170/190/210/240/260/290 | Dongfeng Cummins Diesel Co.,Ltd | 170/190/210/240/260/290hp | |
| Performance | |||
| Van body size(mm) | 6800×2300×2200 | Load capacity(m3) | 30-45 |
| Lowest refrigeration temperature(ºC) | -18 centigrade | ||
| Feature and Application | |||
| The refrigerator truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, Polyurethane insulation van, refrigeration unit and temperature recorder. It is commonly used to transport the frozen food, dairy products, vegetable and fruit and vaccine medicine etc. For the special requirements of trucks,such as the meat transportation, the meat hook, aluminum alloy guide rail and ventilation slots etc. parts can be chosen and installed. | |||
Advantages
1.Precision Temperature Control: Supports -20℃ to 20℃ adjustable range, with stable insulation— ideal for frozen food, medicine, and fresh produce transport.
2.Durable & Efficient Design: Heavy-duty insulated body (food-grade material, anti-corrosion) + high-load chassis, ensuring 10+ years of reliable use even in harsh environments.
3.Customization Flexibility: Fully customizable: cargo capacity (1-60 tons), temperature range, body size, accessories (e.g., multi-compartment partitions, GPS tracking) — tailored to your local transport needs.
4.Cost-Effective Operation: Energy-saving refrigeration system (30% lower fuel consumption than standard models) + low-maintenance components, cutting long-term operational costs.
