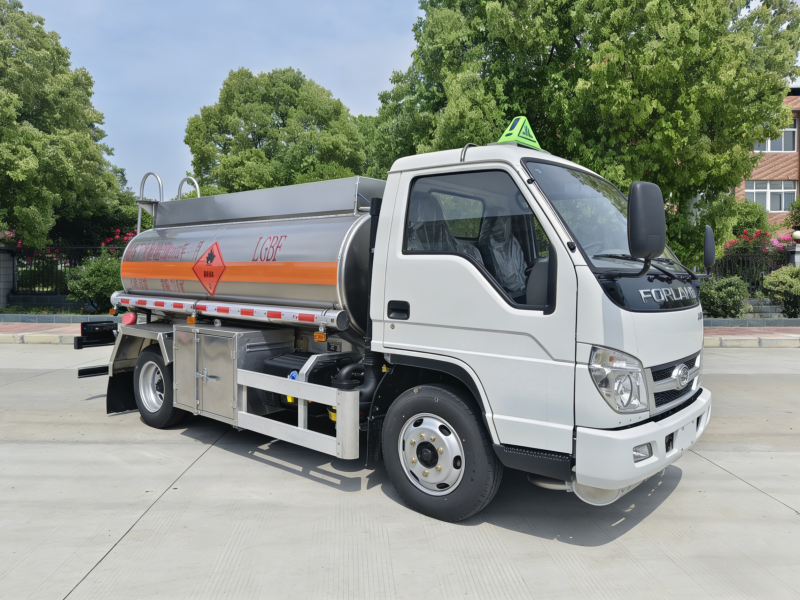

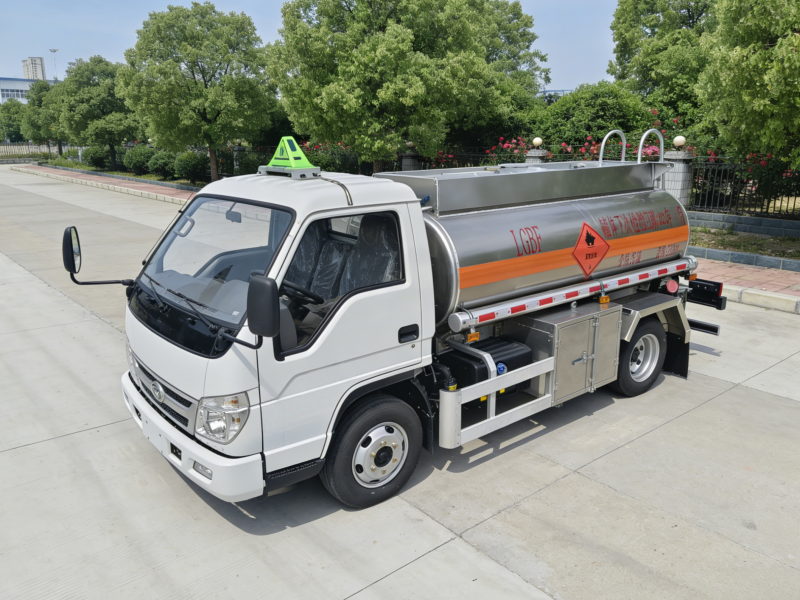

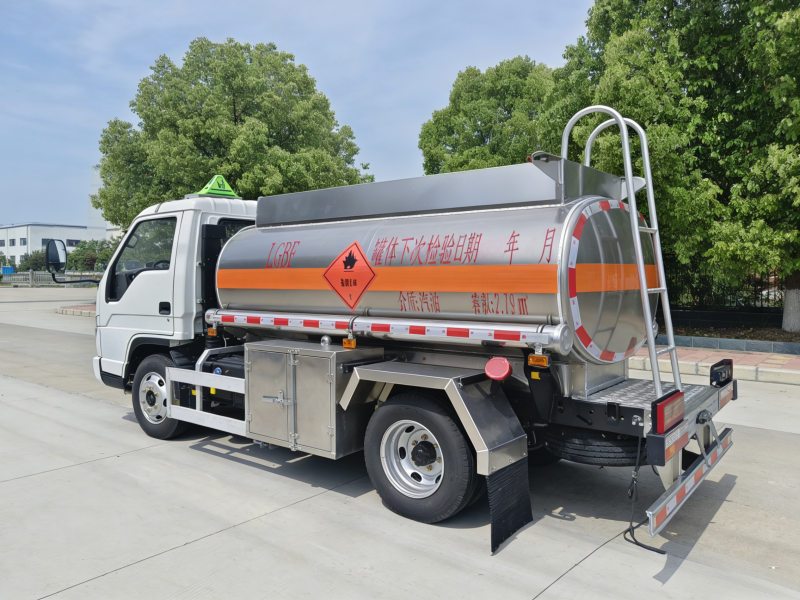

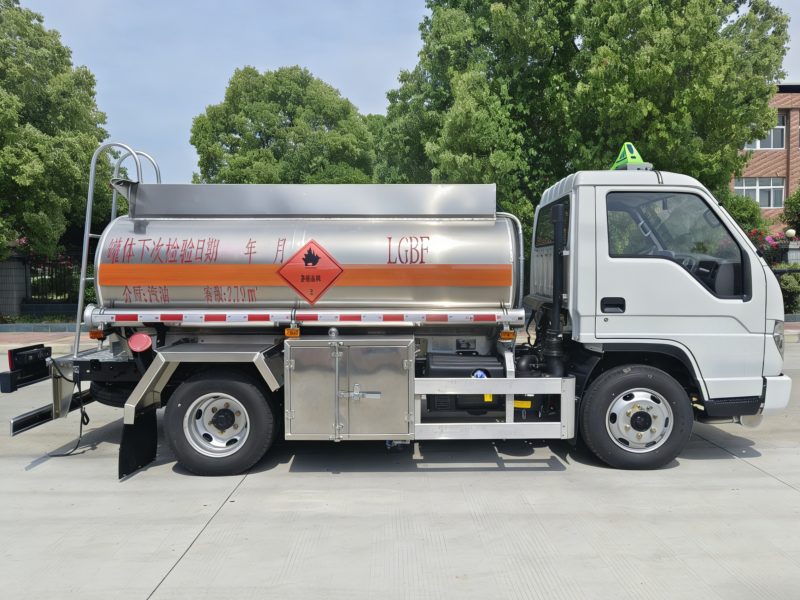

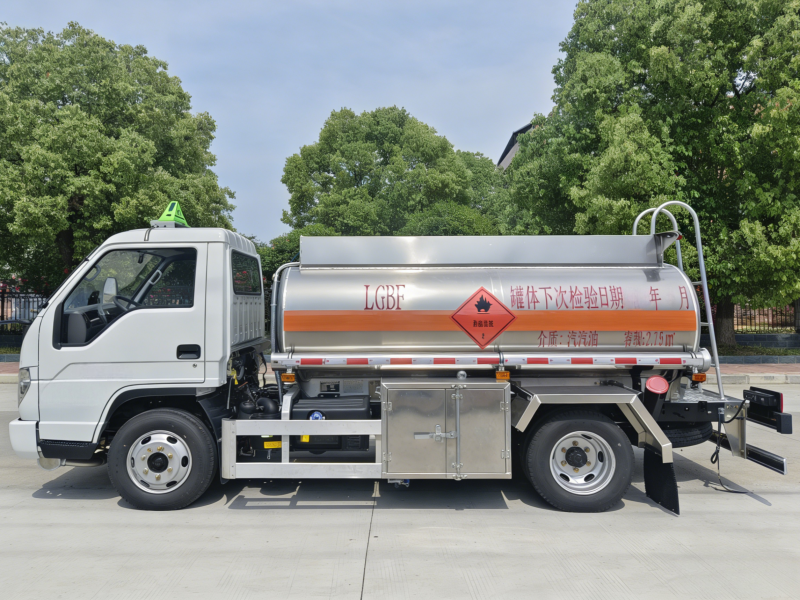

Foton 4×2 Mini 2CBM Mobile Oil Tanker Truck
Driving Type: 4×2 LHD/RHD
Wheelbase: 2850mm
Engine Power: 115HP
Transmission: WLY 5-Speed Manual Transmission
Tire: 6.5-inch Steel Radial Tire
Overall Dimension: 5460x1980x2350/2400/2430mm
Tank Capacity: 2600L
Delivery Time: Within 30 Days
Category：Fuel Tanker
Introduction
For oil tanker truck, according to the transport medium, the configuration and different places, there are many different titles, such as: tanker, tank truck, oil tanker, refueling truck, tax-control refueling truck, fuel tanker, Petrol tanker, coal tar carrier, lube oil carrier, crude oil transporter, heavy oil transporter, oil transporter and so on.
We can supply oil tanker truck from 2000L to 45000L, oil tank trailer from 30000L to 60000L. The tank shape have square-round, oval, round.The tank material adopts high-quality 4-6mm thick carbon steel, stainless steel, aluminum alloy, etc. Can separate warehouse, separate different oil products, tank body set up multiple anti-wave partitions.
Transport medium: Applicable to the transport of gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar and non-petroleum products of alcohol, aldehyde, benzene, ether and other liquid substances.
Features
- Foton chassis, perfect performance.
- Quanchai engine, super powerful; reliable performance, no overhaul within 100,000 km.
- Nice shape, rational structure.
- Fuel pump super powerful, highly efficient, with pump in pump out function.
- Massive, durable, long service life.
Technical Datas
| Vehicle Parameters | |||
| Vehicle dimension | 5995/8700/12000X2460X2900mm | Curb weight | 7600kg |
| Tank dimension | 4000/6200/9600X2050X1445mm | Tank volume | 1000-45000L |
| Chassis Parameters | |||
| Chassis model | HSD1160BX | Chassis brand | FOTON/ DONGFENG /Isuzu /HOWO /JAC /FAW /Shacman |
| Overall dimensions | 6300/8290/12000x2370x2760mm | Wheel base | 3300/3800/4700/5500mm |
| Cab | A row and a half deluxe cab,hydraulic mechanical flip,channel type instrument panel,air conditioner, | ||
| allowable 3 passengers | |||
| Horse power | 120-460hp | ||
| Emission | Euro 3/4/5 | ||
| Displacement | 2999/4200/5900/8999/10000ml | ||
| Tire | 7.00R16/10.00R20/12.00R20 | Transmission | 5/6/8/10/12 speed forward 1 reverse |
| Steering device | Power assisted steering | Steering wheel | LHD/RHD |
| Fuel Tank Parameters | |||
| Tank Volume | 1000-45000L | Tank dimension | 6200X2050X1445mm |
| Tank material | Carbon steel/Aluminium | Tank thickness | 5mm |
| Standard configuration | Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire | ||
| extinguisher, oil hose. | |||
