Foton 8×4 30000L Fuel Tank Truck Refuel Tank Truck
Driving Type: 8×4 LHD/RHD
Wheelbase: 2100+4400+1350mm
Engine Power: Cummins 360HP
Transmission: Fast Gear 12-Speed
Tire: 12.00R22.5 Tyres
Overall Dimension: 11900 X 2500 X 3440mm
Tank Capacity: 31000L
Delivery Time: Within 30 Days
Category：Fuel Tanker
Introduction
Oil tank truck also called fuel tank truck, refueling truck, crude oil transporting truck which is mainly used for transportation and storage gasoline, diesel, crude oil, and other oil products.It could be equipped with fuel pump to realize pumping in and out, with fuel dispenser to filling different kinds of oil to the other equipment at anywhere.The tanker could be divided into many compartments for transporting different types of fuel, which could be loading and discharging totally separate.The material of the tanker could be carbon steel, stainless steel, aluminum alloy.

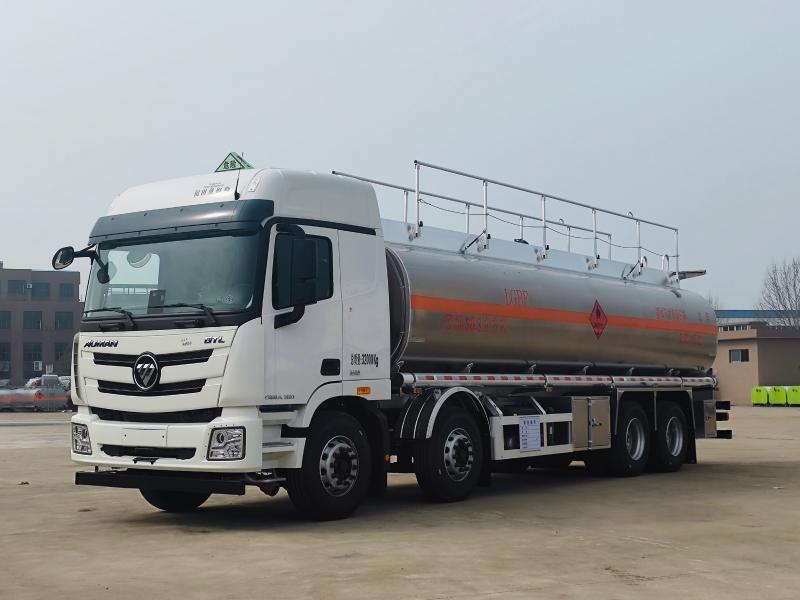

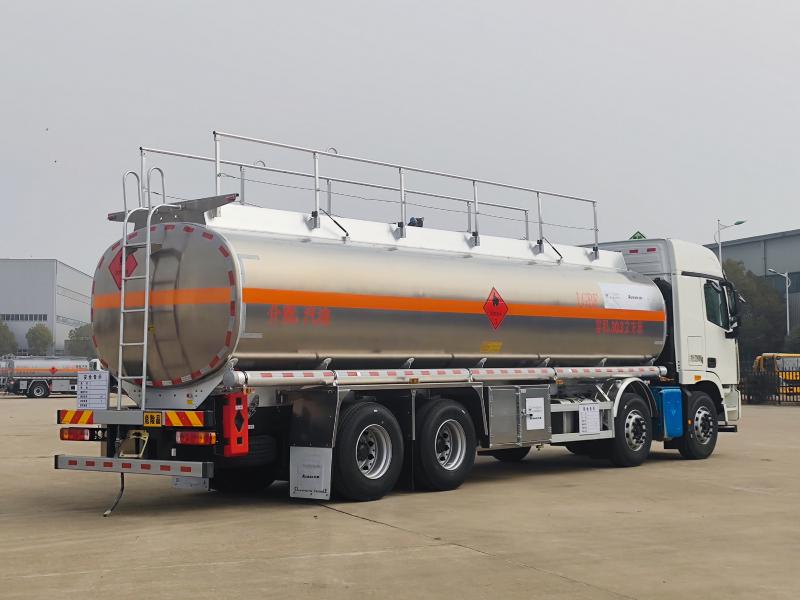

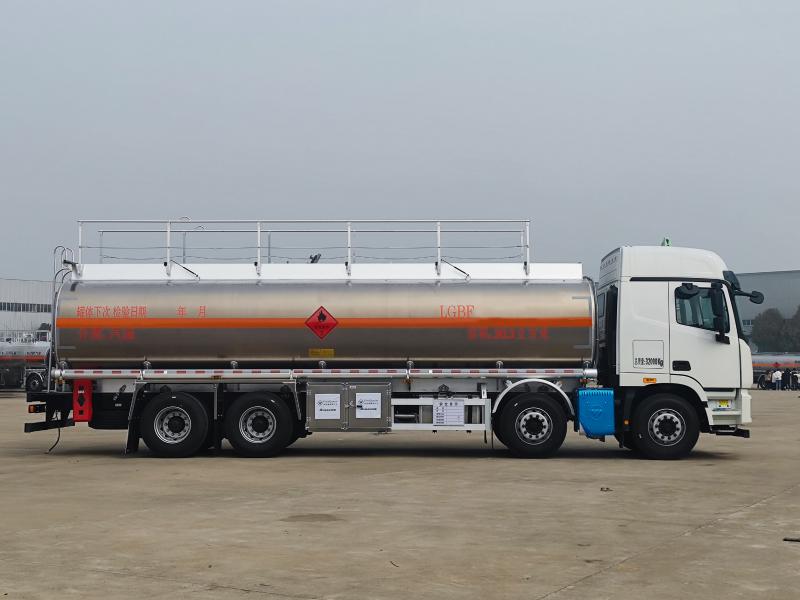

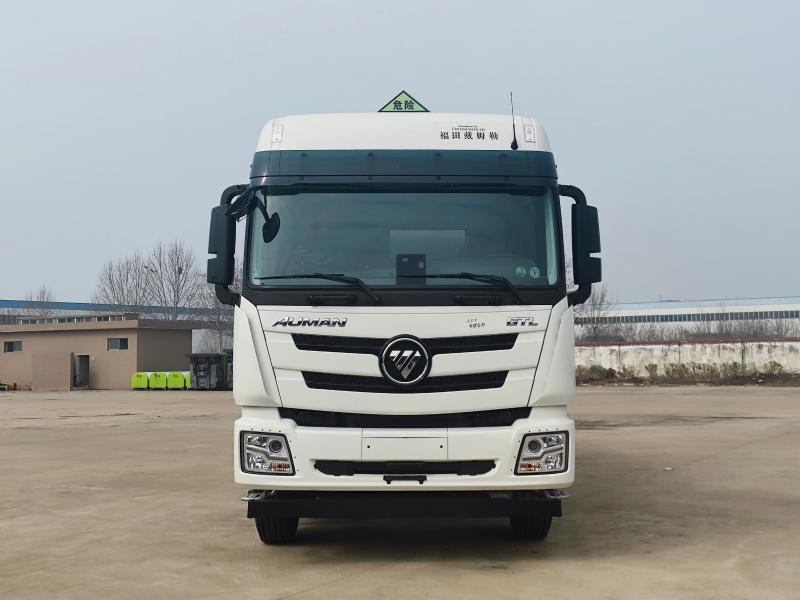

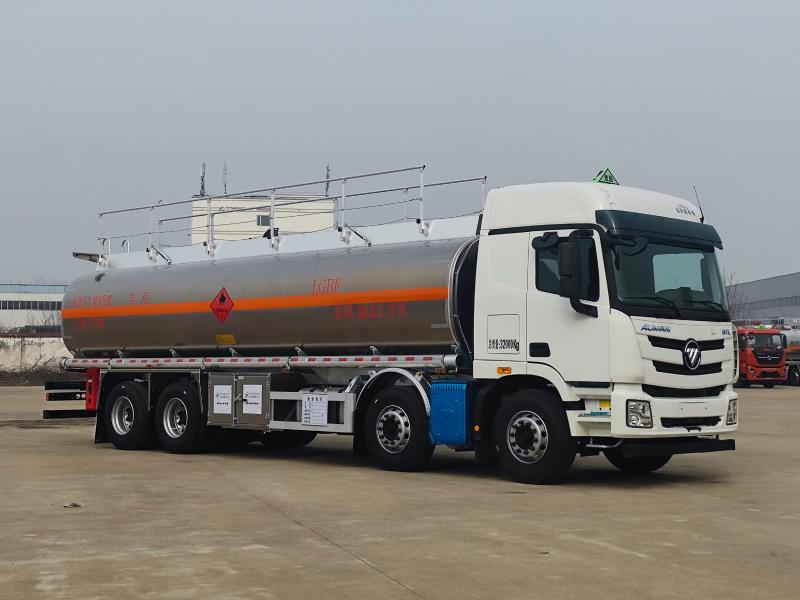

The Foton Ouman 30000L Aluminum Alloy Fuel Tank Truck is a premium solution for large-scale fuel transportation. Featuring a powerful Cummins 360 HP engine and a lightweight aluminum alloy tank, this front-four-rear-eight (8×4) vehicle combines strength, efficiency, and safety. Ideal for transporting diesel and gasoline, it’s built to optimize payload while reducing fuel costs.
KEY FEATURES
- FOTON chassis, perfect performance
- SHANGCHAI/Cummins engine option, super powerful, no overhaul within 100,000 km.
- Tanker body capacity from 1 to 35 Cublic Meter.
- Easy operation and easy maintenance.
Technical Datas
| Overall dimensions(mm) | 11650x2550x3400 |
| curb weight(Kg) | 11665 |
| Loading capacity(Kg) | 20205 |
| Total mass(Kg) | 32000 |
| Tank thickness(mm) | 5 |
| Tank Volume(m³) | 30.5 |
| Tank Body Material | Aluminum alloy |
| anti wave plate | yes |
| Operating Ambient Temperature（°C） | -20~45 |
| Mouth of tank | European standard |
| Emergency shutoff valve | yes |
| Oil gas recovery unit | yes |
| Anti-overflow alarm device | yes |
| Fuel loading method | Bottom filling |
| Gear oil pump flow(m³/h) | 60 |
| Toolbox | Customized to your needs |
| Maximum Speed（km/h） | 80 |
| Chassis brand | FOTON |
| Drive form | 8*4 |
| Steering wheel | Left hand drive |
| Steering device | Power assisted steering |
| Wheelbase(mm) | 2100+4400+1350 |
| Engine brand | Cummins |
| Max engine power(HP) | 360 |
| Engine displacement(ml) | 10500 |
| Engine emission standard | Euro 6 |
| Number of engine cylinders | 6 |
| Fuel type | Diesel |
| Gearbox | 12 speed forward 1 reverse |
| Front/rear axle(t) | 6.5/6.5+1.9 |
| Suspension | Multi leaf springs |
| Brake system | Front/Rear Drum full air braking |
| Wheels and tyre size | 12R22.5 18PR |
| Cab configuration | Single row cab, air conditioning, radio, MP3 and USB port,ABS |
| Rated voltage | 24V,DC |
| Cab color | White,other color is optional |
